HMMWV Heater and Air Conditioning Condenser, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 494

Every part in figure 494 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5230 Air Conditioning Components: 21 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

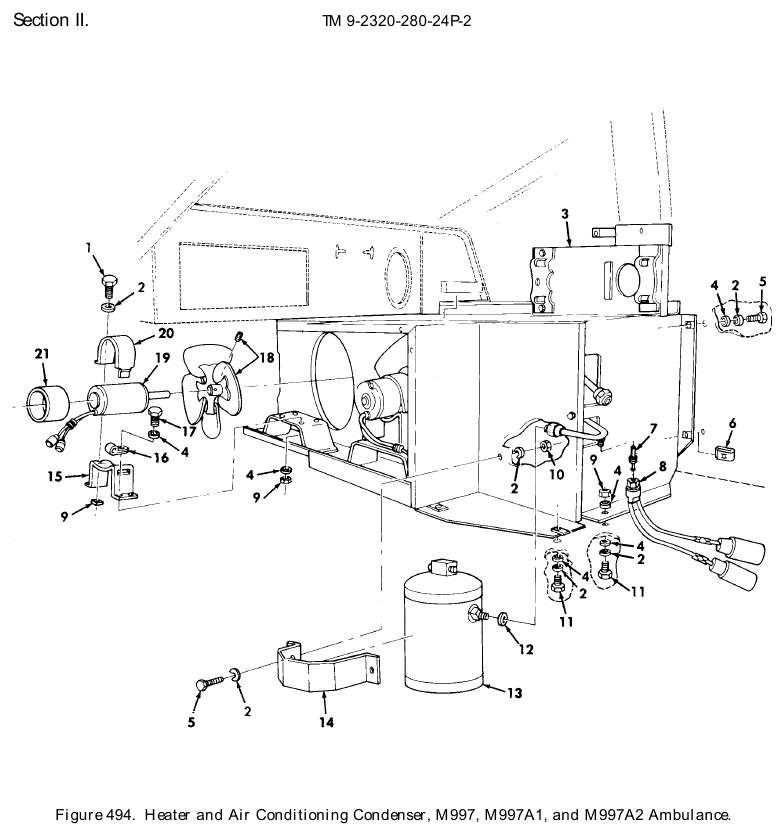

TM 9-2320-280-24P figure 494, Heater and Air Conditioning Condenser, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-01-296-7762 · P/N 201686 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M997, M997A1, M997A2	1	We can source it
2	Lock Washer NSN 5310-01-270-2661 · P/N 202755 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	7	We can source it
3	Refrigeration Condenser NSN 4130-01-300-6350 · P/N 410909 CONDENSER,REFRIGERA Fits: M997, M997A1, M997A2	1	15 in stock $1,252.60 per eachgov't list price
4	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	10	50 in stock
5	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	5	471 in stock
6	Spring Tension Clip NSN 5340-01-296-1736 · P/N 290308 CLIP,SPRING TENSION 1/4-20 Fits: M997, M997A1, M997A2	15	We can source it
7	Flow Control Valve NSN 4820-01-265-3149 · P/N 405475 VALVE Fits: M997, M997A1, M997A2	1	We can source it
8	Pressure Switch NSN 5930-01-266-1809 · P/N 404179 SWITCH,PRESSURE Fits: M997, M997A1	1	3 in stock $151.67 per eachgov't list price
9	Plain Cap Nut NSN 5310-01-272-3311 · P/N 5741427 NUT,PLAIN,CAP 1/4-20 Fits: M997, M997A1, M997A2	8	We can source it
10	Plain Hexagon Nut NSN 5310-00-761-6882 · P/N MS51967-2 NUT,PLAIN,HEXAGON 1/4-20 Fits: M997, M997A1, M997A2	2	805 in stock $9.79our price Buy online ↗
11	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H Fits: M997, M997A1, M997A2	2	559 in stock
12	O-Ring NSN 5331-01-061-3000 · P/N 300448 O-RING Fits: M997, M997A1, M997A2	1	We can source it
13	Receiver-Dehydrator NSN 4130-01-171-5997 · P/N 585810 RECEIVER-DEHYDRATOR Fits: M997, M997A1	1	We can source it $35–$65 eachtypical
14	Mounting Bracket NSN 5340-01-271-6465 · P/N 513395 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	We can source it $180.54 per eachgov't list price
15	Mounting Bracket NSN 5340-01-271-6466 · P/N 513394 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	We can source it $203.13 per eachgov't list price
16	Loop Clamp NSN 5340-01-289-7793 · P/N 290309 CLAMP,LOOP Fits: M997, M997A1, M997A2	2	We can source it $40–$80 eachtypical
17	Cap Hexagon Head Screw NSN 5305-01-278-7118 · P/N 201685 SCREW,CAP,HEXAGON H 1/4-20 X 1-1/4 Fits: M997, M997A1, M997A2	8	We can source it $75–$130 eachtypical
18	Ventilating Fan NSN 4140-01-269-7101 · P/N 265330 FAN,VENTILATING Fits: M997, M997A1, M997A2	2	We can source it $25–$45 eachtypical
19	Direct Current Motor NSN 6105-01-265-8634 · P/N 274278 MOTOR,DIRECT CURREN Fits: M997, M997A1, M997A2	2	We can source it $732.38 per eachgov't list price
20	Webbing Strap NSN 5340-01-271-6455 · P/N 513396 STRAP,WEBBING Fits: M997, M997A1, M997A2	2	We can source it $45–$90 eachtypical
21	Rubber Round Section NSN 9320-01-085-2889 · P/N 58701 RUBBER ROUND SECTIO Fits: M997, M997A1, M997A2	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
