HMMWV Heater and Air Conditioning Condenser, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 495

Every part in figure 495 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5230 Air Conditioning Components: 15 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

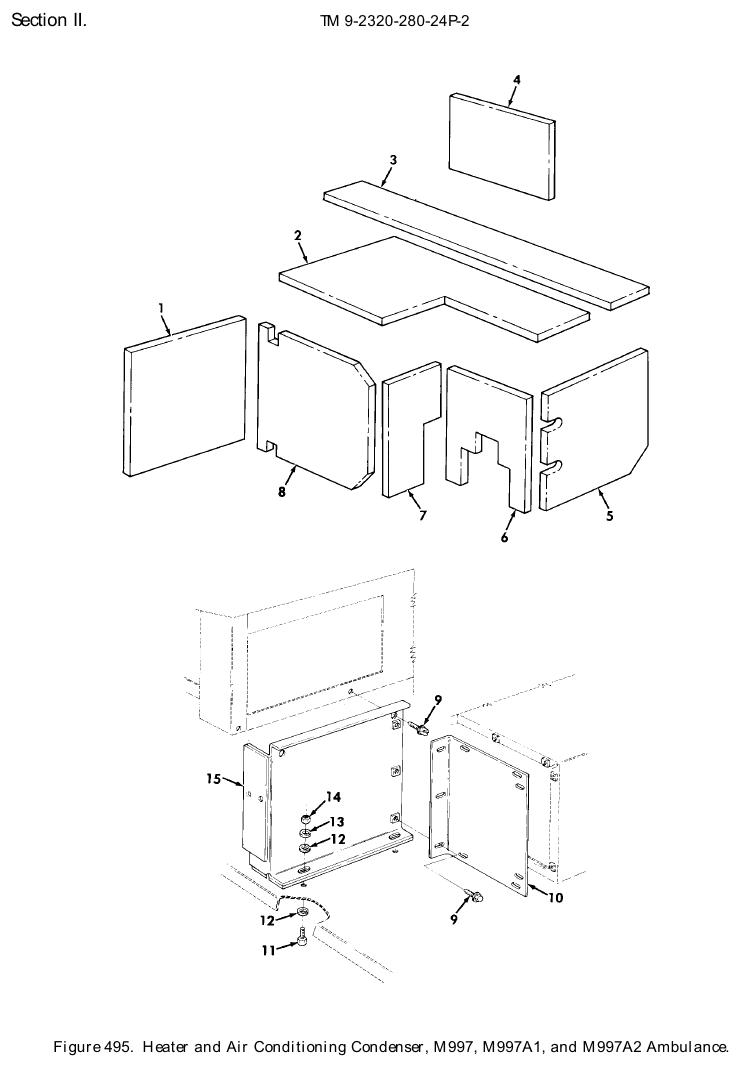

TM 9-2320-280-24P figure 495, Heater and Air Conditioning Condenser, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Panel Front Close Out
P/N SF5598816
PANEL FRONT CLOSE OUT,MAKE FROM PAD,CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
2
Top Make From Pad Panel Condenser
P/N SF5598242
PANEL CONDENSER,TOP,MAKE FROM PAD, CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
3
Condensor Insulation Blanket
P/N 12341680
INSULATION BLANKET, CONDENSOR,TOP OUTER,MAKE FROM PAD CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
4
Make From Pad Panel Heater Side
P/N SF5598821
PANEL HEATER SIDE,MAKE FROM PAD, CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
5
Rear Make From Pad Panel Condenser
P/N SF5598239
PANEL CONDENSER,REAR,MAKE FROM PAD, CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
6
Side Make From Pad Panel Condenser
P/N SF5598240
PANEL CONDENSER,SIDE,MAKE FROM PAD, CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
7
Make From Pad Panel Condenser Rear
P/N SF5598815
PANEL CONDENSER REAR,MAKE FROM PAD, CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
8
Panel Condenser Close Out Panel
P/N SF5598243
PANEL CONDENSER CLOSE OUT PANEL, MAKE FROM PAD,CUSHIONING P/N CF40BH52
Fits: M997, M997A1, M997A2
 1 Ask us
9
Tapping Screw
NSN 5305-01-264-5874 · P/N 12340792
SCREW,TAPPING #10-12 X .75
Fits: M997, M997A1, M997A2
 11 We can source it
10
Air Conditioner Cover
NSN 4130-01-278-9837 · P/N 5934219
COVER,AIR CONDITION
Fits: M997, M997A1, M997A2
 1 We can source it
$95–$155 eachtypical
11
Cap Hexagon Head Screw
NSN 5305-00-068-0502 · P/N MS90725-6
SCREW,CAP,HEXAGON H 1/4-20 X 3/4
Fits: M997, M997A1, M997A2
 5 471 in stock
12
Flat Washer
NSN 5310-00-823-8804 · P/N MS27183-9
WASHER,FLAT 1/4
Fits: M997, M997A1, M997A2
 10 50 in stock
13
Lock Washer
NSN 5310-01-270-2661 · P/N 202755
WASHER,LOCK
Fits: M997, M997A1, M997A2
 7 We can source it
14
Plain Hexagon Nut
NSN 5310-00-761-6882 · P/N MS51967-2
NUT,PLAIN,HEXAGON 1/4-20
Fits: M997, M997A1, M997A2
 2 805 in stock
$9.79our price
Buy online ↗
15
Fluid Cooler Industrial Baffle
NSN 4420-01-276-5050 · P/N 410925
BAFFLE,FLUID COOLER FRONT
Fits: M997, M997A1, M997A2
 1 We can source it
$116.10 per eachgov't list price
Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
