HMMWV Air Conditioning Evaporator and Mounting Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 496

Every part in figure 496 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5241 Air Conditioning Components: 31 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

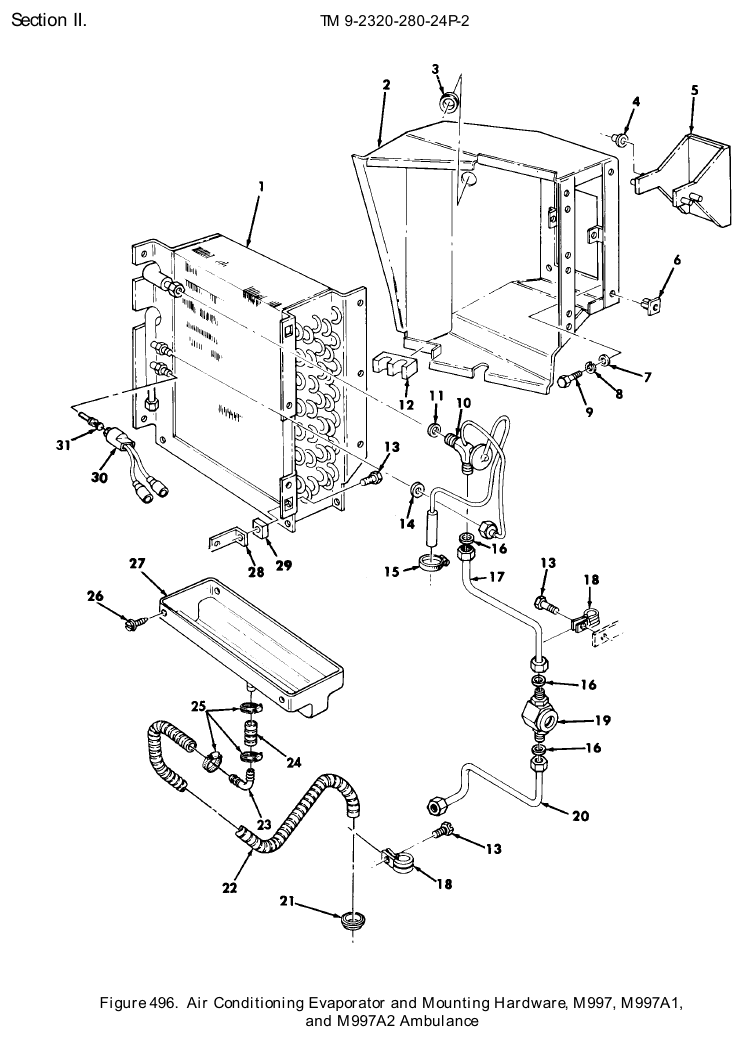

TM 9-2320-280-24P figure 496, Air Conditioning Evaporator and Mounting Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Refrigeration Evaporator Coil NSN 4130-01-265-8726 · P/N 400084 EVAPORATOR COIL,REF Fits: M997, M997A1	1	We can source it $539.66 per eachgov't list price
2	Air Conditioner Evaporator NSN 4130-01-282-1895 · P/N 410917 EVAPORATOR,AIR COND Fits: M997, M997A1, M997A2	1	We can source it $2,142.16 per eachgov't list price
3	Nonmetallic Grommet NSN 5325-00-263-6648 · P/N MS35489-135 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	450 in stock
4	Sleeve Bushing NSN 3120-01-270-2646 · P/N 204434 BUSHING,SLEEVE Fits: M997, M997A1, M997A2	2	We can source it
5	Access Cover NSN 5340-01-281-7795 · P/N 410918 COVER,ACCESS Fits: M997, M997A1, M997A2	1	We can source it $599.65 per eachgov't list price
6	Plain Cap Nut NSN 5310-01-272-3311 · P/N 5741427 NUT,PLAIN,CAP 1/4-20 Fits: M997, M997A1, M997A2	5	We can source it
7	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	6	50 in stock
8	Lock Washer NSN 5310-01-270-2661 · P/N 202755 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	6	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	6	471 in stock
10	Expansion Valve NSN 4820-01-161-6435 · P/N 58583 VALVE,EXPANSION Fits: M997, M997A1	1	1 in stock $120.81 per eachgov't list price
11	O-Ring NSN 5331-01-160-9857 · P/N 300442 O-RING Fits: M997, M997A1, M997A2	1	95 in stock
12	Nonmetallic Strip Seal NSN 5330-01-282-2214 · P/N 354944 SEAL,NONMETALLIC ST LOWER RIGHT Fits: M997, M997A1, M997A2	1	1 in stock $25–$40 eachtypical
13	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2 Fits: M997, M997A1, M997A2	5	300 in stock
14	O-Ring NSN 5331-00-185-0075 · P/N B2099690G1 O-RING Fits: M997, M997A1, M997A2	1	We can source it
15	Hose Clamp NSN 4730-00-908-3193 · P/N 30024H CLAMP,HOSE Fits: M997, M997A1, M997A2	1	168 in stock
16	O-Ring NSN 5331-01-061-3000 · P/N 300448 O-RING Fits: M997, M997A1, M997A2	3	We can source it
17	Tube NSN 4710-01-265-3152 · P/N 405680 TUBE UPPER Fits: M997, M997A1	1	We can source it $70–$120 per assemblytypical
18	Loop Clamp NSN 5340-01-276-6738 · P/N 290249 CLAMP,LOOP Fits: M997, M997A1, M997A2	3	We can source it
19	Sight Liquid Indicator NSN 6680-01-265-8698 · P/N 405565 INDICATOR,SIGHT,LIQ Fits: M997, M997A1	1	We can source it $177.50 per eachgov't list price
20	Metal Tube Assembly NSN 4710-01-285-5123 · P/N 405681 TUBE ASSEMBLY,METAL LOWER Fits: M997, M997A1	1	We can source it $80–$135 eachtypical
21	Nonmetallic Grommet NSN 5325-00-276-6090 · P/N MS35489-18 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it
22	Nonmetallic Hose NSN 4720-01-282-0143 · P/N 300515 HOSE,NONMETALLIC .82 INCHES LONG Fits: M997, M997A1, M997A2	1	We can source it
23	Hose Elbow NSN 4730-01-439-2814 · P/N 12342655 ELBOW,HOSE Fits: M997, M997A1, M997A2	1	We can source it
24	Drain Hose Assembly NSN 4720-01-282-0160 · P/N 405695 HOSE ASSEMBLY,DRAIN Fits: M997, M997A1, M997A2	1	We can source it $35–$70 eachtypical
25	Hose Clamp NSN 4730-00-230-2959 · P/N 290227 CLAMP,HOSE Fits: M997, M997A1, M997A2	3	We can source it
26	Tapping Screw NSN 5305-01-270-5419 · P/N 200335 SCREW,TAPPING,THREA Fits: M997, M997A1, M997A2	4	We can source it
27	Truck Pan NSN 4130-01-269-4921 · P/N 410920 PAN,TRUCK Fits: M997, M997A1, M997A2	1	We can source it $60–$105 eachtypical
28	Mounting Bracket NSN 5340-01-271-6467 · P/N 513438 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	2	36 in stock $80–$130 eachtypical
29	Sleeve Spacer P/N 204531 SPACER,SLEEVE Fits: M997, M997A1, M997A2	2	Ask us
30	Pressure Switch NSN 5930-01-266-3917 · P/N 404180 SWITCH,PRESSURE Fits: M997, M997A1, M997A2	1	We can source it $153.45 per eachgov't list price
31	Flow Control Valve NSN 4820-01-265-3149 · P/N 405475 VALVE Fits: M997, M997A1, M997A2	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
