HMMWV Stoplight Switch, Time Delay Module, and High Beam Selector Switch TM 9-2320-280-24P · Fig. 51

Every part in figure 51 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 14 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

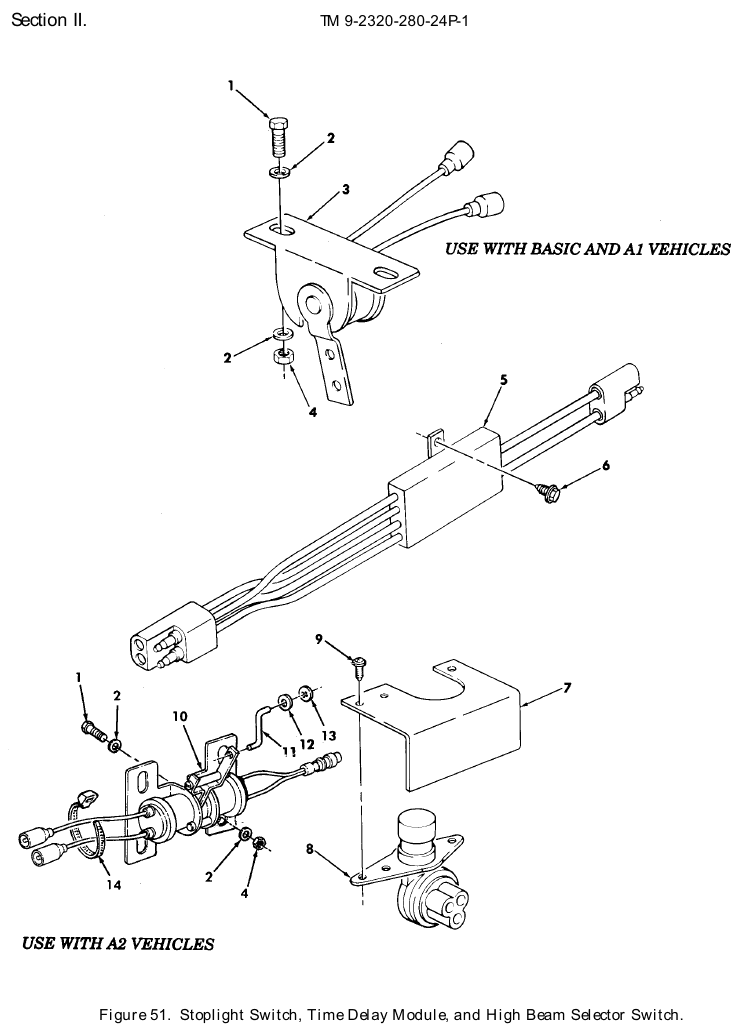

TM 9-2320-280-24P figure 51, Stoplight Switch, Time Delay Module, and High Beam Selector Switch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X .75 Fits: All models	2	We can source it
2	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	4	2,325 in stock
3	Rotary Switch NSN 5930-00-207-9422 · P/N 11663279 SWITCH,ROTARY Fits: All A0 and A1 models, plus M1121	1	347 in stock $93.10our price Buy online ↗
4	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All models	2	570 in stock
5	Solid State Relay NSN 5945-01-193-7175 · P/N 12338603 RELAY,SOLID STATE Fits: All models	1	128 in stock $50–$85 eachtypical
6	Screw NSN 5305-01-204-6502 · P/N 112-1008800-003 SCREW #10-32 X 1/2 Fits: All models	2	10 in stock
7	Angle Bracket NSN 5340-01-209-7794 · P/N 12338726 BRACKET,ANGLE Fits: All models	1	6 in stock $25–$40 eachtypical
8	Beam Selecting Headlight Switch NSN 2590-00-801-2355 · P/N 8396186 SWITCH,BEAM SELECTI Fits: All models	1	365 in stock $79.50our price Buy online ↗
9	Assembled Washer Screw NSN 5305-00-499-7694 · P/N 454542 SCREW,ASSEMBLED WAS 1/4-20 X 1/2 Fits: All models	3	We can source it
10	Stoplight Automotive Switch NSN 2540-01-410-8789 · P/N RCSK17810 SWITCH,STOPLIGHT,AU Fits: All A2 models, plus M1123	1	87 in stock $112.69our price Buy online ↗
11	Rigid Connecting Link NSN 3040-01-444-5640 · P/N 12460229 CONNECTING LINK,RIG BRAKE LIGHT SWITCH Fits: All A2 models, plus M1123	1	We can source it
12	Flat Washer NSN 5310-00-402-2778 · P/N 9416128 WASHER,FLAT #10 Fits: All A2 models, plus M1123	2	We can source it
13	Push on Nut NSN 5310-01-188-6861 · P/N 12339313 PUSH ON NUT 3/16 STUD Fits: All A2 models, plus M1123	2	12 in stock
14	Tie Down Electrical Compon Strap NSN 5975-00-133-8687 · P/N MS3367-5-0 STRAP,TIEDOWN,ELECT Fits: All A2 models, plus M1123	2	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
