HMMWV Control Box Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 52

Every part in figure 52 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 32 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

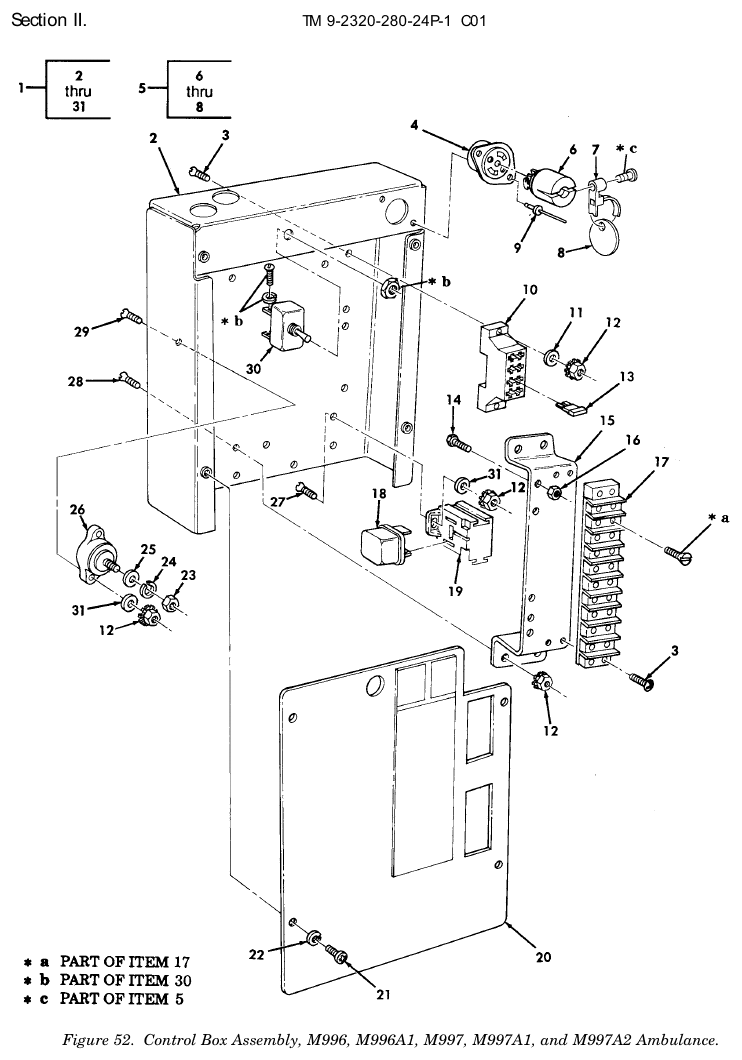

TM 9-2320-280-24P figure 52, Control Box Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Vehicular Control Box NSN 2540-01-277-2313 · P/N 12341910 CONTROL BOX,ELECTRI Fits: M996, M996A1	1	1 in stock quote only $1,373.70 per assemblygov't list price
1	Control Box P/N 12341564 CONTROL BOX,ELECTRI Fits: M997, M997A1, M997A2	1	Ask us
2	Control Box P/N 5597128 CONTROL BOX Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
3	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	12	55 in stock
4	Receptacle Electrical Connector NSN 5935-01-269-5994 · P/N 12341749 CONNECTOR,RECEPTACL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
5	Plug Assembly P/N 5594317 PLUG ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
6	Plug Electrical Connector NSN 5935-01-282-7833 · P/N 5593599 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$55 eachtypical
7	Tie Down Electrical Compon Strap NSN 5975-01-299-7781 · P/N T30MR-0 STRAP,TIEDOWN,ELECT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
8	Instruction Plate NSN 9905-01-294-3356 · P/N 5594319 PLATE,INSTRUCTION Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
9	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	641 in stock
10	Block Fuseholder NSN 5920-01-270-0090 · P/N 12341726 FUSEHOLDER,BLOCK Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
11	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
12	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	19	474 in stock
13	Enclosed Link Fuse NSN 5920-01-085-0825 · P/N AA55569/01-009 FUSE,INCLOSED LINK 20 AMP Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
14	Cap Hexagon Head Screw NSN 5305-00-543-5828 · P/N MS35309-306 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
15	Retaining Strap NSN 5340-01-274-3021 · P/N 12340983 STRAP,RETAINING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $446.73 per eachgov't list price
16	Plain Hexagon Nut NSN 5310-00-855-1102 · P/N MS35649-2255 NUT,PLAIN,HEXAGON 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
17	Terminal Board NSN 5940-00-983-6105 · P/N 39TB10F TERMINAL BOARD Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $50–$85 eachtypical
18	Electromagnetic Relay NSN 5945-01-266-4593 · P/N 5597249 RELAY,ELECTROMAGNET Fits: M996, M996A1, M997, M997A1, M997A2	2	24 in stock $25–$40 eachtypical
19	Plug-IN Electronic Compon Socket NSN 5935-01-269-8992 · P/N 5597248 SOCKET,PLUG-IN ELEC Fits: M996, M996A1, M997, M997A1, M997A2	2	44 in stock $25–$40 eachtypical
20	Cover Assembly P/N 5597593 COVER ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
21	Machine Screw NSN 5305-00-984-6194 · P/N MS35206-246 SCREW,MACHINE #8-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	4	418 in stock
22	Lock Washer NSN 5310-00-045-3299 · P/N MS35338-42 WASHER,LOCK #8 Fits: M996, M996A1, M997, M997A1, M997A2	4	84 in stock
23	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M996, M996A1, M997, M997A1, M997A2	1	219 in stock
24	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	1,162 in stock
25	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
26	Stud Terminal NSN 5940-01-272-5800 · P/N 12341639 TERMINAL,STUD Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $148.27 per eachgov't list price
27	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE #10-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	307 in stock
28	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
29	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
30	Toggle Switch NSN 5930-00-615-9376 · P/N MS35059-21 SWITCH,TOGGLE Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock quote only $50–$95 eachtypical
31	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #10 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
