HMMWV Control Box Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 53

Every part in figure 53 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 5 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

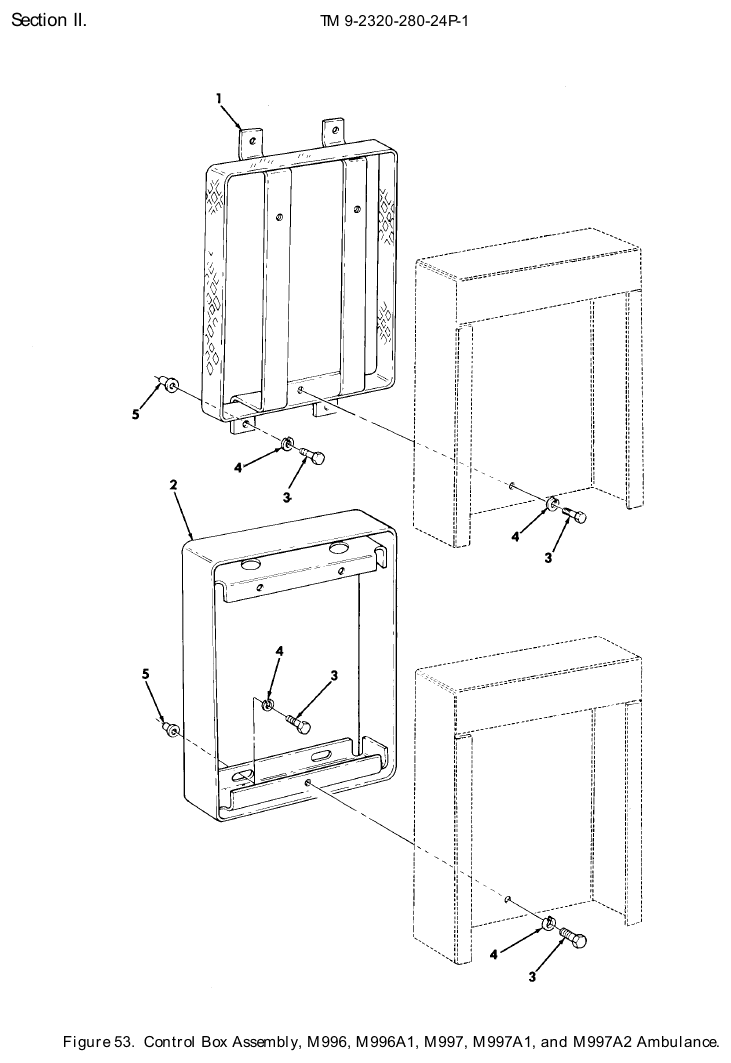

TM 9-2320-280-24P figure 53, Control Box Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-289-6216 · P/N 5598218 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $391.61 per eachgov't list price
2	Mounting Bracket NSN 5340-01-289-4475 · P/N 5598221 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $3,958.25 per eachgov't list price
3	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M996, M996A1, M997, M997A1, M997A2	14	471 in stock
4	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	14	4,285 in stock
5	Plain Blind Rivet Nut NSN 5310-01-198-1722 · P/N 5982526 NUT,PLAIN,BLIND RIV 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
