Catalog › Parts manuals › TM 9-2320-280-24P › Miscellaneous Items › Fig. 54

HMMWV Air Conditioner and Heater Control Box, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 54

Every part in figure 54 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 13 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

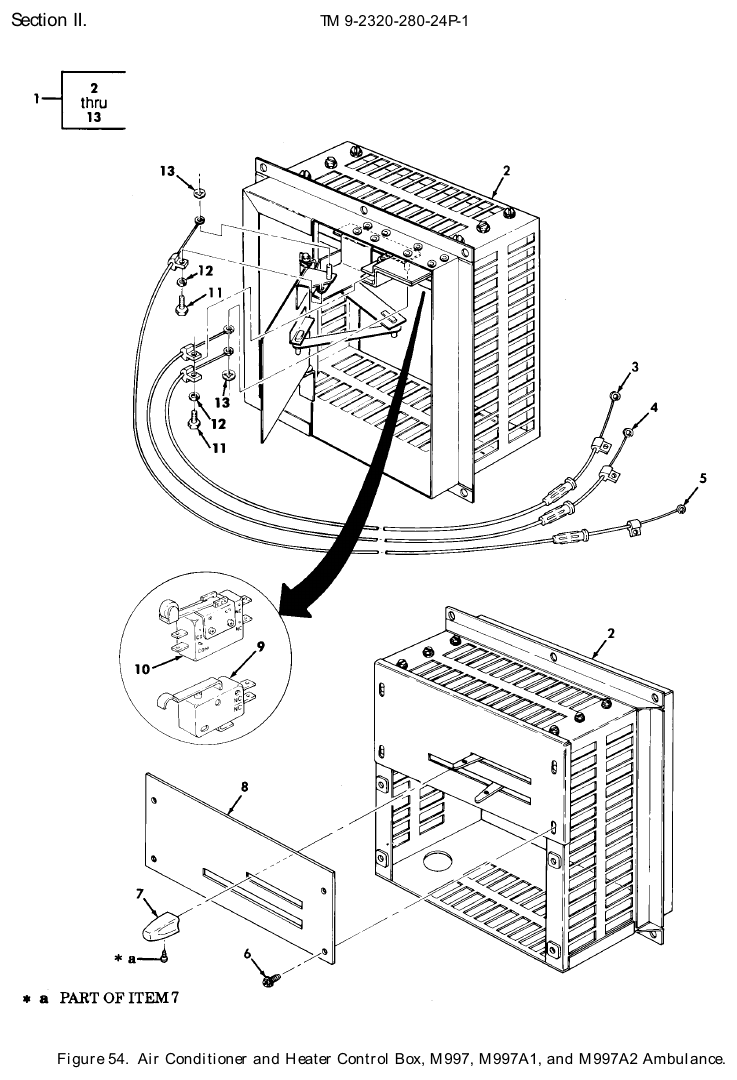

TM 9-2320-280-24P figure 54, Air Conditioner and Heater Control Box, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Vehicular Control Box NSN 2540-01-265-3234 · P/N 410913 CONTROL BOX,ELECTRI Fits: M997, M997A1, M997A2	1	1 in stock
2	Control Box P/N 513448 CONTROL BOX Fits: M997, M997A1, M997A2	1	Ask us
3	Push-Pull Control Assembly NSN 2590-01-276-5071 · P/N 243047 CONTROL ASSEMBLY,PU Fits: M997, M997A1, M997A2	1	520 in stock $30–$65 eachtypical
4	Special Purpose E Cable Assembly NSN 6150-01-276-7698 · P/N 243046 CABLE ASSEMBLY,SPEC Fits: M997, M997A1, M997A2	1	We can source it $40–$75 eachtypical
5	Push-Pull Control Assembly NSN 2990-01-406-8738 · P/N 243048 CONTROL ASSEMBLY,PU Fits: M997, M997A1, M997A2	1	9 in stock $25–$60 eachtypical
6	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: M997, M997A1, M997A2	4	We can source it
7	Knob NSN 5355-01-167-4114 · P/N 58668 KNOB Fits: M997, M997A1, M997A2	2	We can source it
8	Vehicular Operation Panel NSN 2510-01-276-5058 · P/N 410915 PANEL,VEHICULAR OPE Fits: M997, M997A1, M997A2	1	We can source it quote only $109.61 per eachgov't list price
9	Sensitive Switch NSN 5930-01-190-1231 · P/N 65171 SWITCH,SENSITIVE Fits: M997, M997A1, M997A2	2	We can source it $50–$100 eachtypical
10	Interlock Switch NSN 5930-01-311-3610 · P/N 410914 ITEM 8 .SWITCH,INTERLOCK Fits: M997, M997A1, M997A2	1	We can source it $50–$90 eachtypical
11	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M997, M997A1, M997A2	2	55 in stock
12	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	2	709 in stock
13	Push on Nut NSN 5310-01-161-7308 · P/N 62229 PUSH ON NUT 3/16 Fits: M997, M997A1, M997A2	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
