HMMWV Personnel Heater/Vent and A/C Control Panel, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 55

Every part in figure 55 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 22 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

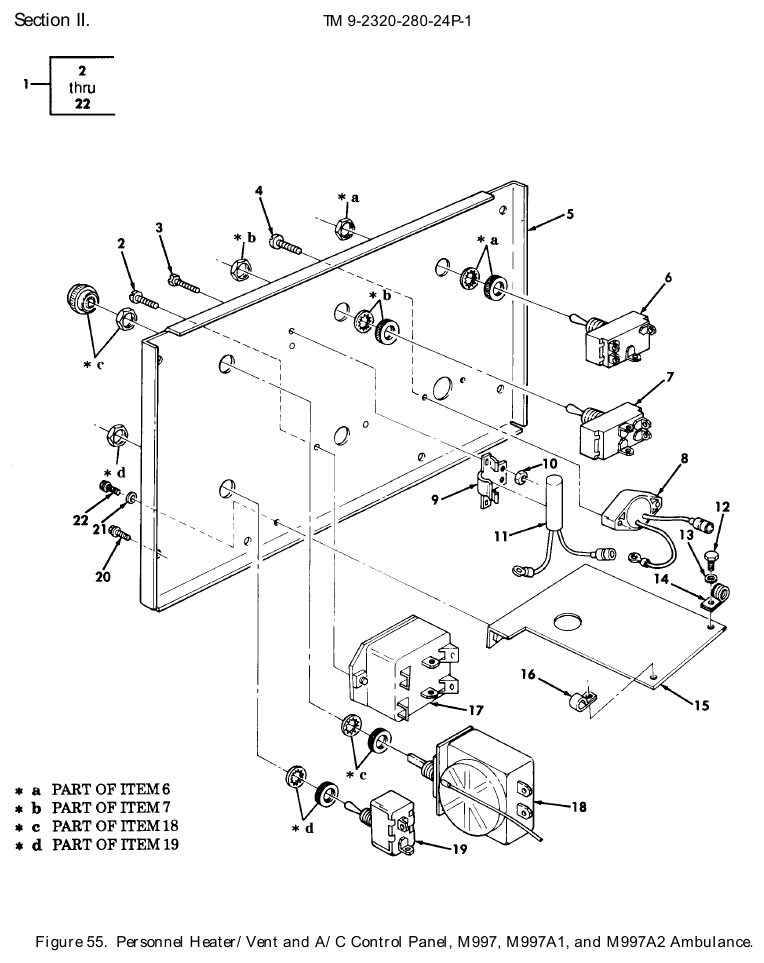

TM 9-2320-280-24P figure 55, Personnel Heater/Vent and A/C Control Panel, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Operation Panel NSN 2510-01-276-5058 · P/N 410915 PANEL,VEHICULAR OPE Fits: M997, M997A1, M997A2	1	We can source it quote only $109.61 per eachgov't list price
2	Machine Screw NSN 5305-00-984-4983 · P/N MS35206-226 SCREW,MACHINE #6-32 X 1/4 Fits: M997, M997A1, M997A2	2	120 in stock
3	Machine Screw NSN 5305-00-984-4976 · P/N MS35206-219 SCREW,MACHINE #4-40 X 3/4 Fits: M997, M997A1, M997A2	2	353 in stock
4	Tapping Screw NSN 5305-01-250-6584 · P/N 167038 SCREW,TAPPING #6-32 X 3/8 Fits: M997, M997A1, M997A2	2	We can source it
5	Panel P/N 513409 PANEL Fits: M997, M997A1, M997A2	1	Ask us
6	Toggle Switch NSN 5930-00-445-9274 · P/N MS27407-4 SWITCH,TOGGLE Fits: M997, M997A1, M997A2	1	We can source it $50–$100 eachtypical
7	Toggle Switch NSN 5930-01-163-6256 · P/N 65140 SWITCH,TOGGLE Fits: M997, M997A1, M997A2	1	1 in stock
8	Indicator Light NSN 6220-01-269-7067 · P/N 12341838 LIGHT,INDICATOR Fits: M997, M997A1, M997A2	1	We can source it $103.44 per eachgov't list price
9	Mounting Bracket NSN 5340-01-270-2681 · P/N 513310 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	We can source it $45–$85 eachtypical
10	Self-Locking Hexagon Nut NSN 5310-00-889-2543 · P/N MS21045-04 NUT,SELF-LOCKING,HE #4-40 Fits: M997, M997A1, M997A2	2	We can source it
11	Tilt Switch NSN 5930-01-266-4592 · P/N 5597738 SWITCH,TILT Fits: M997, M997A1, M997A2	1	1 in stock $1,753.17 per eachgov't list price
12	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X .50 Fits: M997, M997A1, M997A2	2	300 in stock
13	Lock Washer NSN 5310-00-209-0786 · P/N MS35335-33 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	2	93 in stock
14	Hose Clamp P/N 290081 CLAMP,HOSE Fits: M997, M997A1, M997A2	1	Ask us
15	Mounting Bracket NSN 5340-01-288-6551 · P/N 513444 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	We can source it $343.67 per eachgov't list price
16	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP 5/8 Fits: M997, M997A1, M997A2	1	19 in stock
17	Toggle Switch NSN 5930-00-978-8805 · P/N MS25307-312 SWITCH,TOGGLE Fits: M997, M997A1, M997A2	1	We can source it $258.23 per eachgov't list price
18	Thermostatic Switch NSN 5930-01-165-1657 · P/N 65139 SWITCH,THERMOSTATIC Fits: M997, M997A1, M997A2	1	8 in stock $132.29our price Buy online ↗
19	Toggle Switch NSN 5930-00-728-4328 · P/N MS25306-222 SWITCH,TOGGLE Fits: M997, M997A1, M997A2	1	We can source it $128.41 per eachgov't list price
20	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X .50 Fits: M997, M997A1, M997A2	4	We can source it
21	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	2	709 in stock
22	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X .75 Fits: M997, M997A1, M997A2	2	55 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
