HMMWV Personnel Heater/Vent and A/C Control Panels, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 56

Every part in figure 56 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 25 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

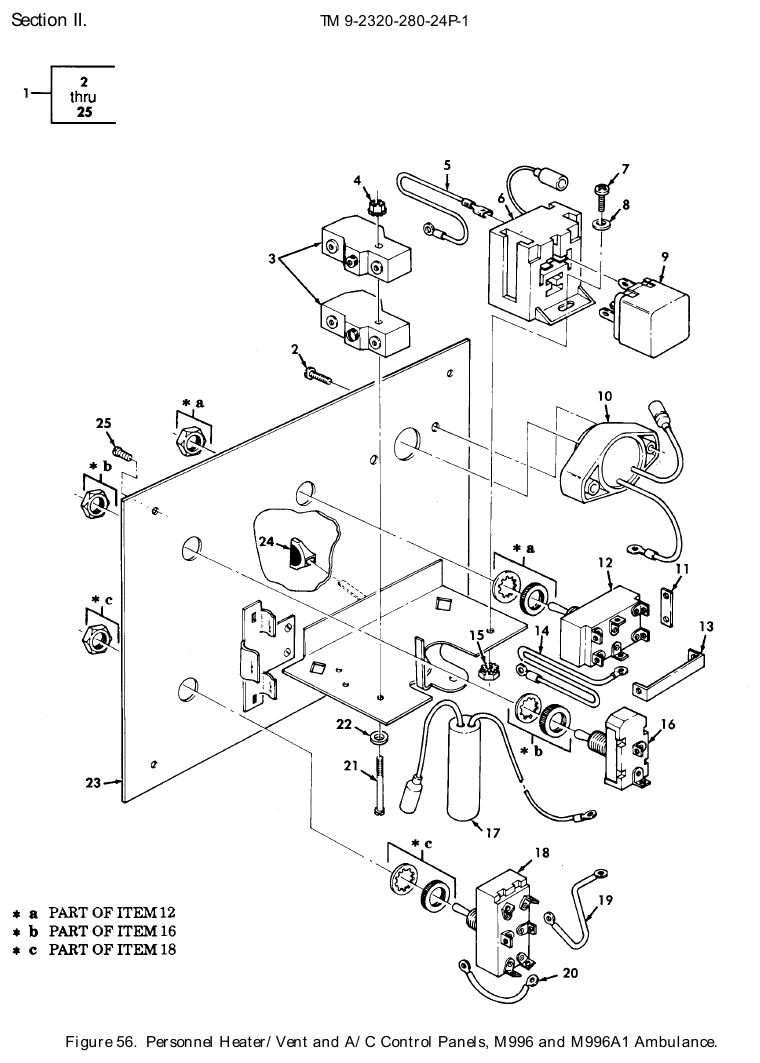

TM 9-2320-280-24P figure 56, Personnel Heater/Vent and A/C Control Panels, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Electrical Vehicular Control Box NSN 2540-01-285-6087 · P/N 5597737 CONTROL BOX,ELECTRI Fits: M996, M996A1	1	We can source it
2	Tapping Screw NSN 5305-01-250-6584 · P/N 167038 SCREW,TAPPING #6-32 X 3/8 Fits: M996, M996A1	2	We can source it
3	Toggle Switch P/N 256A SWITCH,TOGGLE Fits: M996, M996A1	2	Ask us
4	Plain Extended Washer Hexago Nut NSN 5310-01-272-1356 · P/N G-00271482 NUT,PLAIN,EXTENDED #6-32 Fits: M996, M996A1	2	400 in stock
5	Electrical Lead NSN 6150-01-269-1859 · P/N 12341616 LEAD,ELECTRICAL Fits: M996, M996A1	1	We can source it $30–$60 eachtypical
6	Plug-IN Electronic Compon Socket NSN 5935-01-269-8992 · P/N 5597248 SOCKET,PLUG-IN ELEC Fits: M996, M996A1	1	44 in stock $25–$40 eachtypical
7	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1	1	We can source it
8	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M996, M996A1	1	We can source it
9	Electromagnetic Relay NSN 5945-01-266-4593 · P/N 5597249 RELAY,ELECTROMAGNET 24 VOLTS Fits: M996, M996A1	1	24 in stock $25–$40 eachtypical
10	Indicator Light NSN 6220-01-269-7067 · P/N 12341838 LIGHT,INDICATOR Fits: M996, M996A1	1	We can source it $103.44 per eachgov't list price
11	Retaining Electrical Conne Plate NSN 5935-00-790-4614 · P/N 7951748 PLATE,RETAINING,ELE Fits: M996, M996A1	1	We can source it $109.83 per eachgov't list price
12	Toggle Switch NSN 5930-00-978-8805 · P/N MS25307-312 SWITCH,TOGGLE Fits: M996, M996A1	1	We can source it $258.23 per eachgov't list price
13	Electrical Lead NSN 6150-00-039-8258 · P/N G488213 JUMPER ASSEMBLY Fits: M996, M996A1	1	We can source it $187.30 per eachgov't list price
14	Electrical Lead Assembly NSN 6150-01-473-8640 · P/N 5593479 LEAD ASSEMBLY,ELECT Fits: M996, M996A1	1	We can source it $35–$75 eachtypical
15	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M996, M996A1	1	10 in stock
16	Toggle Switch NSN 5930-00-728-4328 · P/N MS25306-222 SWITCH,TOGGLE Fits: M996, M996A1	1	We can source it $128.41 per eachgov't list price
17	Tilt Switch NSN 5930-01-266-4592 · P/N 5597738 SWITCH,TILT Fits: M996, M996A1	1	1 in stock $1,753.17 per eachgov't list price
18	Toggle Switch NSN 5930-00-445-9274 · P/N MS27407-4 SWITCH,TOGGLE Fits: M996, M996A1	1	We can source it $50–$100 eachtypical
19	Electrical Lead NSN 6150-01-269-1861 · P/N 12341615-1 LEAD,ELECTRICAL Fits: M996, M996A1	1	We can source it
20	Electrical Lead NSN 6150-01-269-1862 · P/N 12341615-3 LEAD,ELECTRICAL Fits: M996, M996A1	1	We can source it
21	Machine Screw NSN 5305-00-150-3408 · P/N MS35206-329 SCREW,MACHINE #6-32 X 1-3/4 Fits: M996, M996A1	2	40 in stock
22	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK #6 Fits: M996, M996A1	2	29 in stock
23	Panel P/N 5597736 PANEL Fits: M996, M996A1	1	Ask us
24	Knob NSN 5355-01-272-5824 · P/N 5598117 KNOB Fits: M996, M996A1	1	1,900 in stock $578.16 per eachgov't list price
25	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: M996, M996A1	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
