HMMWV 24V DC Outlet, Rear, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 57

Every part in figure 57 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 10 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

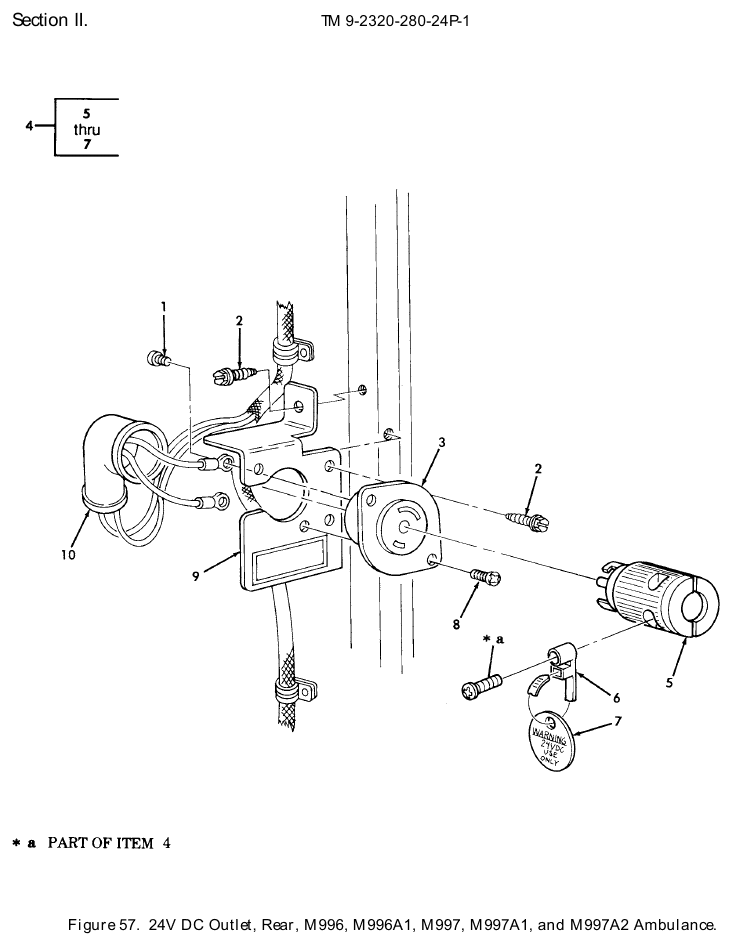

TM 9-2320-280-24P figure 57, 24V DC Outlet, Rear, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Screw NSN 5305-01-276-4870 · P/N Y-11296 SCREW,EXTERNALLY RE Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
2	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
3	Receptacle Electrical Connector NSN 5935-01-269-5994 · P/N 12341749 CONNECTOR,RECEPTACL Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
4	Plug Assembly P/N 5594317 PLUG ASSEMBLY Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
5	Plug Electrical Connector NSN 5935-01-282-7833 · P/N 5593599 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$55 eachtypical
6	Tie Down Electrical Compon Strap NSN 5975-01-299-7781 · P/N T30MR-0 STRAP,TIEDOWN,ELECT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
7	Instruction Plate NSN 9905-01-294-3356 · P/N 5594319 PLATE,INSTRUCTION Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
8	Tapping Screw NSN 5305-01-250-6582 · P/N 5592819 SCREW,TAPPING #6-32 X 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
9	Mounting Bracket NSN 5340-01-273-4668 · P/N 5597267 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $147.29 per eachgov't list price
10	Electrical Cable Nipple NSN 5975-01-280-8922 · P/N 5501 CABLE NIPPLE,ELECTR Fits: M996, M996A1, M997, M997A1, M997A2	1	93 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
