Catalog › Parts manuals › TM 9-2320-280-24P › Miscellaneous Items › Fig. 58

HMMWV Front and Rear Blackout Switches, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 58

Every part in figure 58 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 14 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

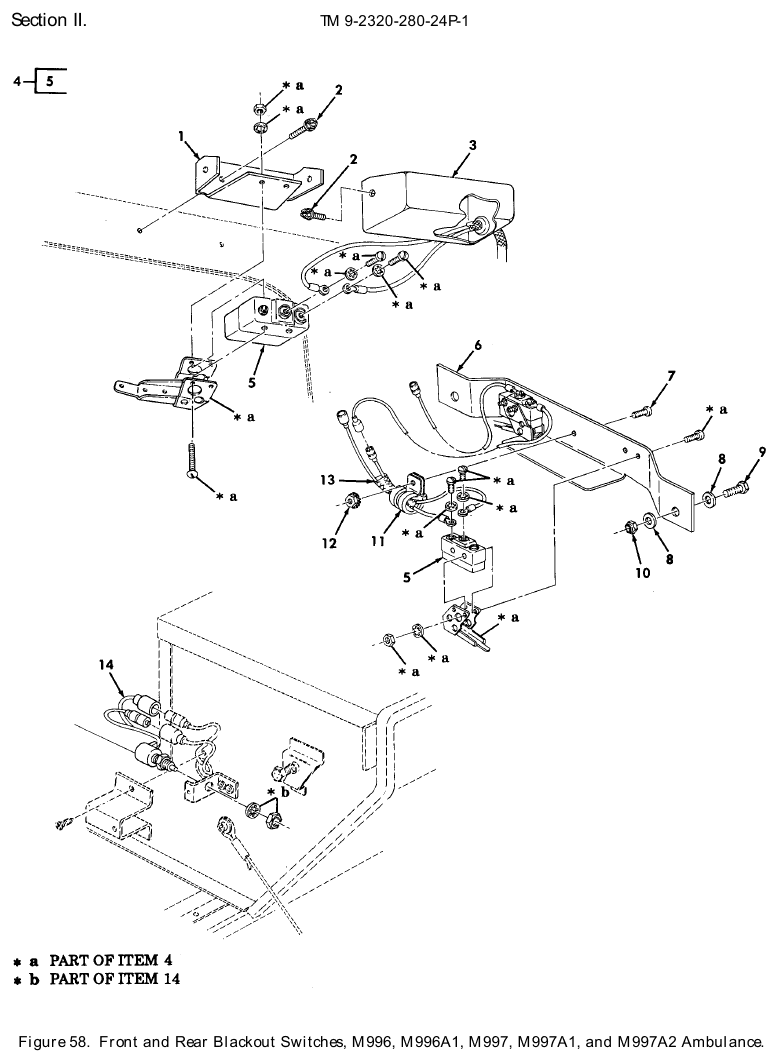

TM 9-2320-280-24P figure 58, Front and Rear Blackout Switches, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-272-5595 · P/N 5598046 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$70 eachtypical
2	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	4	1,205 in stock
3	Junction Box NSN 5975-01-270-4587 · P/N 12341467 JUNCTION BOX Fits: M996, M996A1, M997, M997A1, M997A2	1	124 in stock $50–$95 eachtypical
4	Sensitive Switch NSN 5930-01-266-3919 · P/N 5598011 SWITCH,SENSITIVE Fits: M996, M996A1, M997, M997A1, M997A2	3	1 in stock
5	Sensitive Switch NSN 5930-01-287-6698 · P/N 12341751 SWITCH,SENSITIVE Fits: M996, M996A1, M997, M997A1, M997A2	1	31 in stock $25–$55 eachtypical
6	Mounting Bracket NSN 5340-01-272-3389 · P/N 5597988 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	85 in stock $50–$95 eachtypical
7	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	100 in stock
8	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	2	471 in stock
10	Self-Locking Nut NSN 5310-01-255-2695 · P/N 5593035 NUT,SELF-LOCKING,HE 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
11	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	1	12 in stock
12	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	1	474 in stock
13	Special Purpose E Cable Assembly NSN 6150-01-269-1840 · P/N 12341408 CABLE ASSEMBLY,SPEC Fits: M996, M996A1, M997, M997A1, M997A2	2	22 in stock $25–$55 eachtypical
14	Sensitive Switch NSN 5930-01-266-1811 · P/N 12340927 SWITCH,SENSITIVE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $709.73 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
