Catalog › Parts manuals › TM 9-2320-280-24P › Miscellaneous Items › Fig. 59

HMMWV NBC Control Panel, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 59

Every part in figure 59 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 30 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

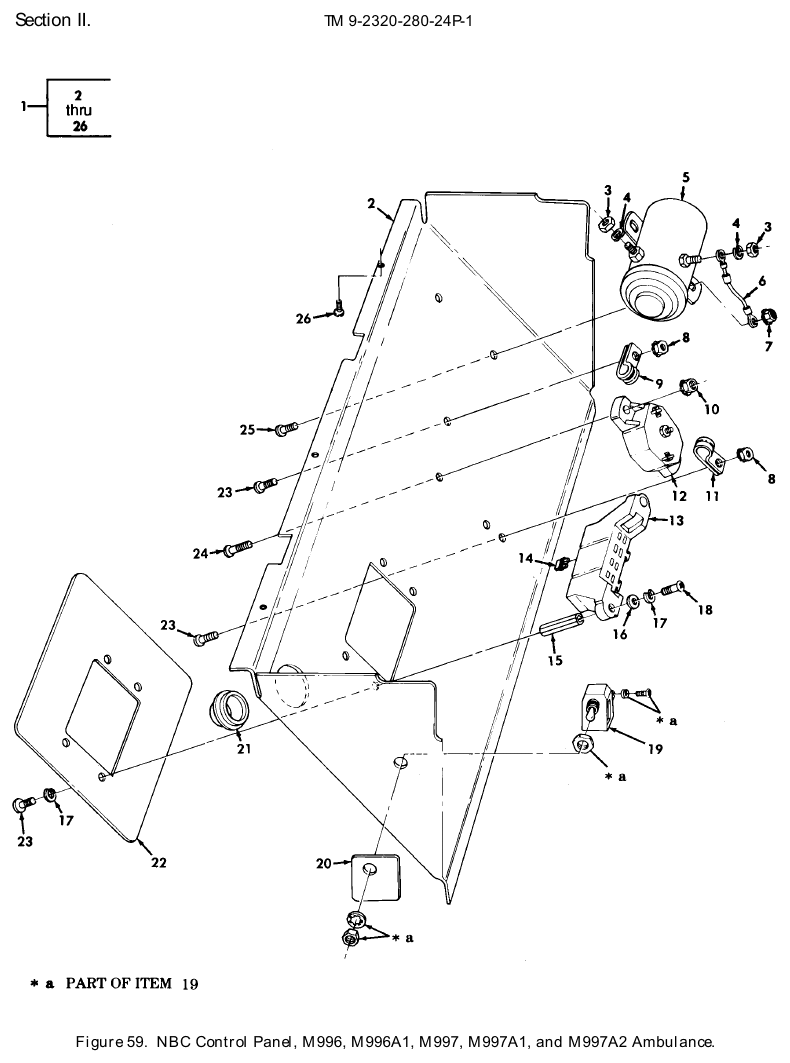

TM 9-2320-280-24P figure 59, NBC Control Panel, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Panel Assembly P/N 5597601 PANEL ASSEMBLY Fits: M996, M996A1	1	Ask us
1	Control Panel P/N 5597197 CONTROL PANEL Fits: M997, M997A1, M997A2	1	Ask us
2	Blank Panel NSN 5975-01-270-8546 · P/N 5598130 PANEL,BLANK Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $582.02 per eachgov't list price
3	Plain Hexagon Nut NSN 5310-00-905-4600 · P/N MS51968-6 NUT,PLAIN,HEXAGON 5/16-24 Fits: M996, M996A1, M997, M997A1, M997A2	2	80 in stock
4	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M996, M996A1, M997, M997A1, M997A2	2	2,036 in stock
5	Electromagnetic Relay NSN 5945-01-266-1810 · P/N 12341416 RELAY,ELECTROMAGNET Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $70–$120 eachtypical
6	Diode Semiconductor Device NSN 5961-01-266-3984 · P/N 12341840 SEMICONDUCTOR DEVIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$70 eachtypical
7	Self-Locking Nut NSN 5310-01-252-2999 · P/N 5593033 NUT,SELF-LOCKING,AS 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	2	1,286 in stock
8	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	3	10 in stock
9	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	We can source it
9	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: M996, M996A1	1	787 in stock
10	Nut NSN 5310-01-250-6587 · P/N 5592998 NUT #8-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
11	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	1	12 in stock
12	Voltage Sensitive Resistor NSN 5905-00-258-6788 · P/N 667201-011 RESISTOR,VOLTAGE SE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $80–$135 eachtypical
13	Block Fuseholder NSN 5920-01-270-0090 · P/N 12341726 FUSEHOLDER,BLOCK Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
14	Enclosed Link Fuse NSN 5920-01-085-0825 · P/N AA55569/01-009 FUSE,INCLOSED LINK 20 AMP Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
15	Threaded Spacing Standoff NSN 5340-01-248-2878 · P/N NAS1831A6E28 POST,ELECTRICAL-MEC Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it $25–$40 eachtypical
16	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
17	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M996, M996A1, M997, M997A1, M997A2	8	709 in stock
18	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	55 in stock
19	Toggle Switch NSN 5930-00-736-3539 · P/N 5582 SWITCH,TOGGLE Fits: M996, M996A1, M997, M997A1, M997A2	1	2 in stock
20	Identification Marker NSN 7690-01-266-5706 · P/N 12341326 MARKER,IDENTIFICATI Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
21	Protective Dust and Moistur Plug NSN 5340-01-273-2380 · P/N 2723 PLUG,PROTECTIVE,DUS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
22	Identification Plate NSN 9905-01-265-1131 · P/N 12341622 PLATE,IDENTIFICATIO Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
22	Identification Plate NSN 9905-01-265-1132 · P/N 12341621 PLATE,IDENTIFICATIO Fits: M996, M996A1	1	We can source it $25–$45 eachtypical
23	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1, M997A1	6	4 in stock
23	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1	6	We can source it
24	Machine Screw NSN 5305-00-984-6194 · P/N MS35206-246 SCREW,MACHINE #8-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	418 in stock
25	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
26	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	6	1,205 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
