HMMWV Front Composite Light and Mounting Hardware TM 9-2320-280-24P · Fig. 60

Every part in figure 60 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 10 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

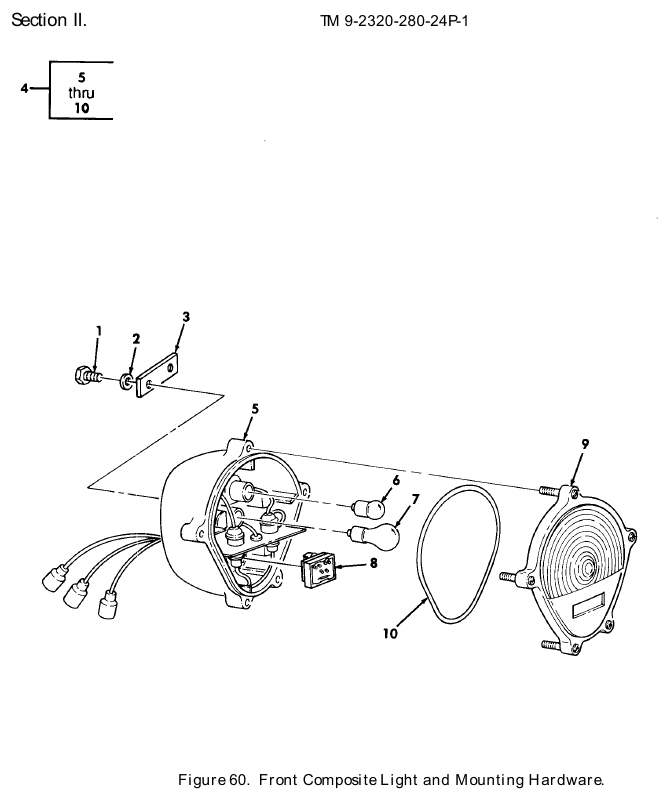

TM 9-2320-280-24P figure 60, Front Composite Light and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Cap Hexagon Head Screw
NSN 5305-00-543-4372 · P/N B1821BH038C075N
SCREW,CAP,HEXAGON H 3/8-16 X .75
Fits: All models
 4 1,537 in stock
2
Flat Washer
NSN 5310-00-087-7493 · P/N MS27183-13
WASHER,FLAT 3/8
Fits: All models
 4 We can source it
3
Mounting Plate
NSN 5340-01-183-7233 · P/N 12338608
PLATE,MOUNTING
Fits: All models
 2 80 in stock
4
Parking Light
NSN 6220-00-880-1624 · P/N 11614156
LIGHT,PARKING
Fits: All models
 2 219 in stock
quote only
$50–$90 eachtypical
5
Body Assembly
P/N 11639541
BODY ASSEMBLY
Fits: All models
 1 Ask us
6
Incandescent Lamp
NSN 6240-00-019-3093 · P/N 2D1959
LAMP,INCANDESCENT
Fits: All models
 1 71 in stock
7
Incandescent Lamp
NSN 6240-00-044-6914 · P/N 1683
LAMP,INCANDESCENT
Fits: All models
 1 366 in stock
8
Blackout Light
NSN 5961-01-305-8848 · P/N 12360865
SEMICONDUCTOR DEVIC
Fits: All models
 1 3 in stock
quote only
$35–$75 eachtypical
9
Light Lens
NSN 6220-00-179-4325 · P/N 11639546
LENS,LIGHT
Fits: All models
 1 99 in stock
$29.00our price
Buy online ↗
10
O-Ring
NSN 5330-00-463-0200 · P/N 11639519-1
O-RING
Fits: All models
 1 81 in stock
Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
