HMMWV Rear Composite Light and Mounting Hardware TM 9-2320-280-24P · Fig. 61

Every part in figure 61 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 11 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

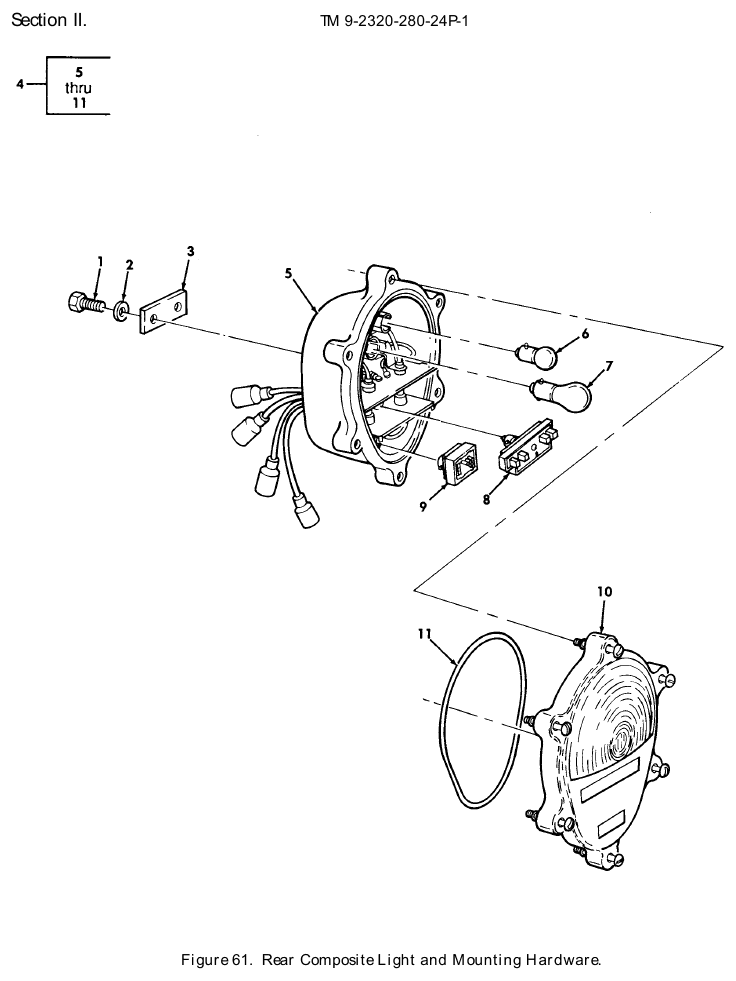

TM 9-2320-280-24P figure 61, Rear Composite Light and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-543-4372 · P/N B1821BH038C075N SCREW,CAP,HEXAGON H 3/8-16 X 3/4 Fits: All models	4	1,537 in stock
2	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All models	4	We can source it
3	Mounting Plate NSN 5340-01-183-7233 · P/N 12338608 PLATE,MOUNTING Fits: All models	2	80 in stock
4	Vehicular Taillight NSN 6220-01-372-3883 · P/N 12375837 TAILLIGHT,VEHICULAR Fits: All models	2	478 in stock quote only
5	Body Assembly P/N 12375838 BODY ASSEMBLY Fits: All models	1	Ask us
6	Incandescent Lamp NSN 6240-00-019-3093 · P/N 2D1959 LAMP,INCANDESCENT Fits: All models	1	71 in stock
7	Incandescent Lamp NSN 6240-00-044-6914 · P/N A52463-2-10 LAMP,INCANDESCENT Fits: All models	1	366 in stock
8	Marker Clearance Light NSN 6220-01-284-2709 · P/N 12360850-1 LIGHT,MARKER,CLEARA Fits: All models	2	83 in stock $25–$45 eachtypical
9	Vehicular Stop Light NSN 6220-01-297-3217 · P/N 12360870-2 STOP LIGHT,VEHICULA Fits: All models	1	13 in stock $25–$45 eachtypical
10	Light Lens NSN 6220-01-359-2870 · P/N 12375841 LENS,LIGHT Fits: All models	1	3 in stock $30–$70 eachtypical
11	O-Ring NSN 5330-00-462-0907 · P/N 11639519-2 O-RING Fits: All models	1	101 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
