HMMWV Blackout Lamp and Headlight Assembly TM 9-2320-280-24P · Fig. 62

Every part in figure 62 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 29 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

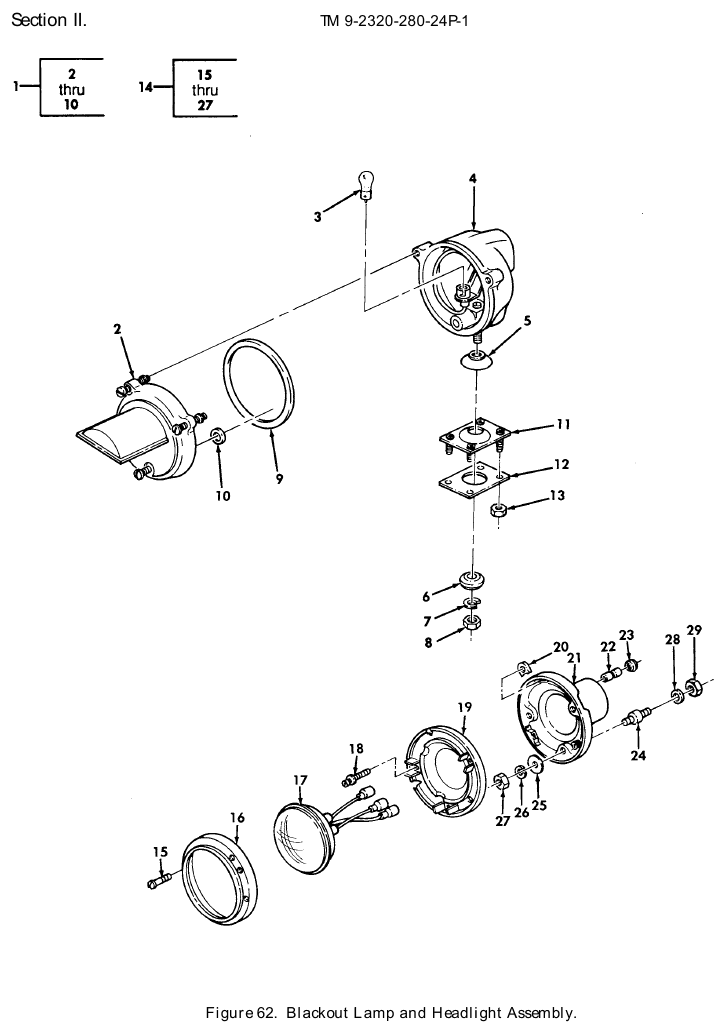

TM 9-2320-280-24P figure 62, Blackout Lamp and Headlight Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Headlight NSN 6220-01-094-1440 · P/N 11668932 HEADLIGHT Fits: All models	1	147 in stock quote only
2	Lens Retainer NSN 6220-01-107-2613 · P/N DC8218 RETAINER,LENS 13/32 Fits: All models	1	3,526 in stock $50–$85 eachtypical
3	Incandescent Lamp NSN 6240-00-044-6914 · P/N A52463-2-10 LAMP,INCANDESCENT Fits: All models	1	366 in stock
4	Blackout Light NSN 6220-01-128-0087 · P/N DGSCV-91-157 DOOR,BLACKOUT LAMP Fits: All models	1	2,406 in stock quote only $85–$140 eachtypical
5	Lock Washer NSN 5310-01-100-2067 · P/N 11668979 WASHER,LOCK 13/32 Fits: All models	1	We can source it
6	Finishing Washer NSN 5310-00-350-2655 · P/N 616G4 WASHER,FINISHING Fits: All models	1	We can source it
7	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All models	1	1,162 in stock
8	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: All models	1	398 in stock
9	Gasket NSN 5330-01-037-0663 · P/N MA128-21182 GASKET Fits: All models	1	3 in stock
10	Gasket NSN 5330-01-076-6172 · P/N DC8226 GASKET Fits: All models	3	We can source it
11	Access Cover NSN 5340-01-286-6191 · P/N 12338605 COVER,ACCESS Fits: All models	1	87 in stock $25–$40 eachtypical
12	Plate Spacer NSN 5365-01-211-5063 · P/N 5579941 SPACER,PLATE Fits: All models	1	2 in stock
13	Plain Assembled Washer Nut NSN 5310-01-251-0760 · P/N G-00271166 NUT,PLAIN,ASSEMBLED #10-24 Fits: All models	4	We can source it
14	Headlight NSN 6220-01-193-1970 · P/N 12338611 HEADLIGHT Fits: All models	2	298 in stock $82.00our price Buy online ↗
15	Externally Relieved Body Screw NSN 5305-00-832-5743 · P/N 8741437 SCREW,EXTERNALLY RE 1/4-20 X 1.125 Fits: All models	3	4 in stock
16	Retaining Ring NSN 5365-00-832-5650 · P/N 8741446 RING,RETAINING Fits: All models	1	84 in stock $40–$75 eachtypical
17	Incandescent Lamp NSN 6240-00-966-3831 · P/N 8741491 LAMP,INCANDESCENT Fits: All models	1	261 in stock $176.40our price Buy online ↗
18	Externally Relieved Body Screw NSN 5305-00-353-0969 · P/N 7538146 SCREW,EXTERNALLY RE 1/4-28 X 1.00 Fits: All models	2	We can source it
19	Lens Retainer NSN 6220-00-998-6142 · P/N 8741447 RETAINER,LENS Fits: All models	1	192 in stock $40–$80 eachtypical
20	Nut Blank NSN 5310-00-241-6921 · P/N 8741435 NUT BLANK Fits: All models	2	We can source it
21	Light Housing NSN 6220-00-443-0589 · P/N 8741461 HOUSING,LIGHT Fits: All models	1	142 in stock $50–$90 eachtypical
22	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR Fits: All models	3	20 in stock
23	Nonmetallic Grommet NSN 5325-00-088-6147 · P/N 8741442 GROMMET,NONMETALLIC Fits: All models	3	We can source it
24	Resilient Utility Mount NSN 5340-01-197-2438 · P/N 5591169 MOUNT,RESILIENT Fits: All models	3	11 in stock
25	Flat Washer NSN 5310-00-463-0268 · P/N 5310615 WASHER,FLAT 1/4 Fits: All models	3	99 in stock
26	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: All models	3	4,285 in stock
27	Plain Hexagon Nut NSN 5310-00-768-0319 · P/N MS51968-2 NUT,PLAIN,HEXAGON 1/4-28 Fits: All models	3	508 in stock
28	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	6	2,325 in stock
29	Self-Locking Hexagon Nut NSN 5310-01-333-5245 · P/N 271175 NUT,SELF-LOCKING,HE 1/4-28 Fits: All models	6	54,170 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
