HMMWV Clearance Marker Light Assembly TM 9-2320-280-24P · Fig. 63

Every part in figure 63 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 16 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

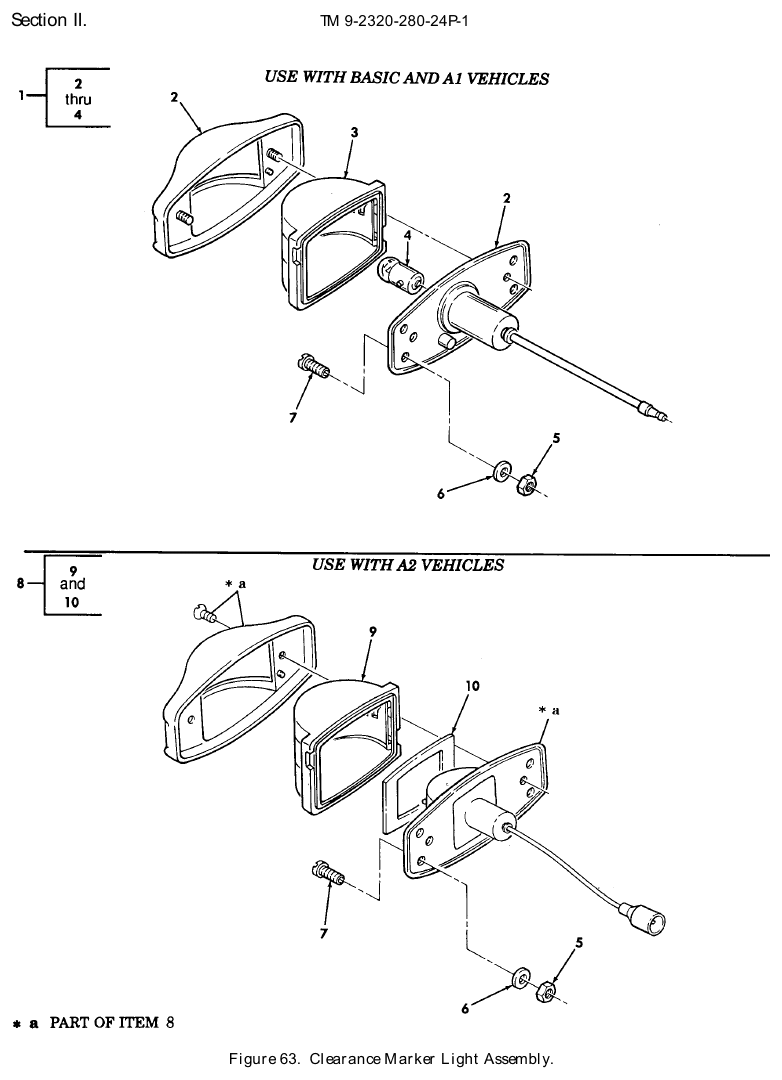

TM 9-2320-280-24P figure 63, Clearance Marker Light Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Marker Clearance Light NSN 6220-00-577-3434 · P/N MS35423-1 LIGHT,MARKER,CLEARA FRONT Fits: All A0 and A1 models, plus M1121	2	346 in stock $25–$60 eachtypical
1	Marker Clearance Light NSN 6220-00-726-1916 · P/N MS35423-2 LIGHT,MARKER,CLEARA REAR Fits: All A0 and A1 models, plus M1121	2	68 in stock $39.99our price Buy online ↗
2	Lampholder NSN 6220-00-729-9295 · P/N MS35422-1 LIGHT,MARKER,CLEARA REAR AND FRONT Fits: All A0 and A1 models, plus M1121	1	522 in stock $40–$75 eachtypical
3	Light Lens NSN 6220-00-299-7425 · P/N MS35421-1 LENS,LIGHT FRONT, AMBER Fits: All A0 and A1 models, plus M1121	1	4 in stock
3	Light Lens NSN 5220-00-299-7426 · P/N MS35421-2 LENS,LIGHT REAR,RED Fits: All A0 and A1 models, plus M1121	1	45 in stock
4	Incandescent Lamp NSN 6240-00-019-0877 · P/N 1251 LAMP,INCANDESCENT REAR Fits: All A0 and A1 models, plus M1121	1	46 in stock
5	Plain Hexagon Nut NSN 5310-00-934-9764 · P/N MS35649-205 NUT,PLAIN,HEXAGON REAR,#10-24 Fits: All models	8	24 in stock
5	Lock Nut NSN 5310-00-251-4503 · P/N 5593048 NUT,LOCK FRONT,#10-32 Fits: All models	8	40 in stock
6	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT REAR,#10 Fits: All models	16	909 in stock
7	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE REAR,#10-24 X 5/8 Fits: All models	8	100 in stock
7	Machine Screw NSN 5305-00-984-6211 · P/N MS35206-264 SCREW,MACHINE FRONT,#10-32 X 7/8 Fits: All models	8	70 in stock
8	Indicator Light NSN 6220-01-418-4404 · P/N 12446845-1 LIGHT,INDICATOR FRONT CLEARANCE Fits: All A2 models, plus M1123	2	971 in stock $30.99our price Buy online ↗
8	Indicator Light NSN 5980-01-443-9093 · P/N 12446845-2 LIGHT EMITTING DIOD REAR CLEARANCE Fits: All A2 models, plus M1123	2	1,067 in stock $30.99our price Buy online ↗
9	Light Lens NSN 6220-00-299-7425 · P/N MS35421-1 LENS,LIGHT FRONT,AMBER Fits: All A2 models, plus M1123	1	4 in stock
9	Light Lens NSN 5220-00-299-7426 · P/N MS35421-2 LENS,LIGHT REAR,RED Fits: All A2 models, plus M1123	1	45 in stock
10	Mechanical Preformed Felt NSN 5330-00-353-0959 · P/N 5939841 FELT,MECHANICAL,PRE Fits: All A2 models, plus M1123	1	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
