HMMWV Backup Light Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 64

Every part in figure 64 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 30 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

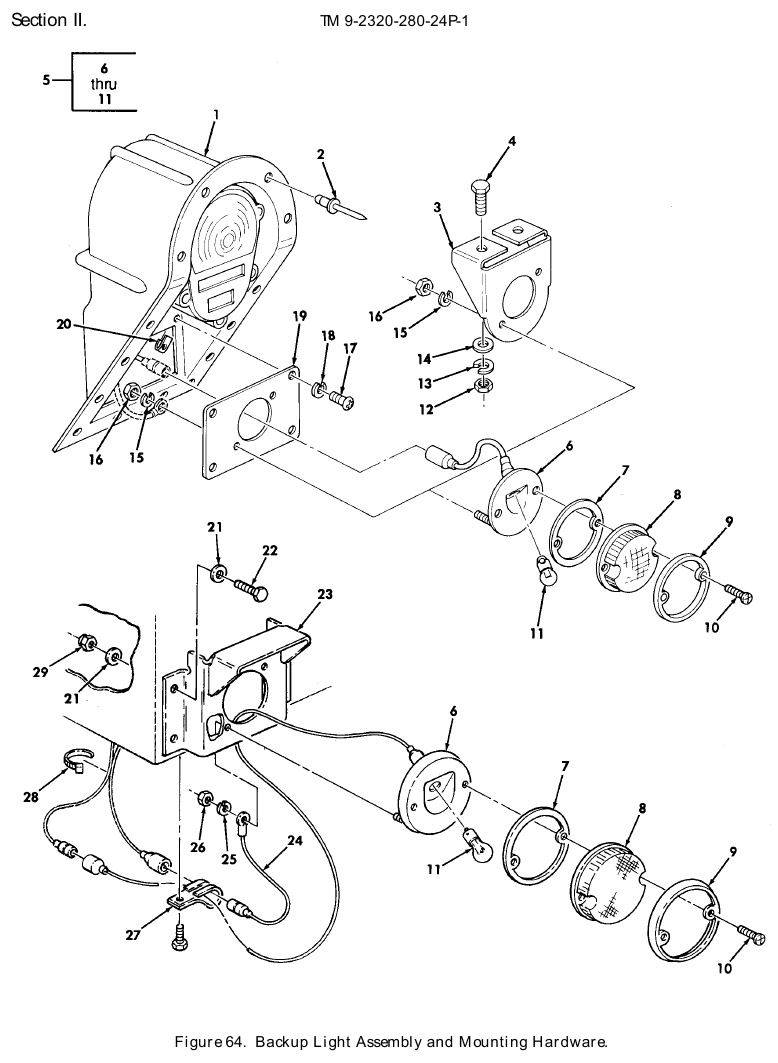

TM 9-2320-280-24P figure 64, Backup Light Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-297-4127 · P/N 12341575 BRACKET,MOUNTING Fits: M996, M996A1, M997, M997A1, M997A2	1	14 in stock $164.99our price Buy online ↗
2	Blind Rivet NSN 5320-01-136-1782 · P/N NAS9301BNS-6-04 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	13	50 in stock
2	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND 3/16 X .50-.250 GRIP Fits: M996, M996A1	13	We can source it
3	Angle Bracket NSN 5340-01-219-7541 · P/N 12338676 BRACKET,ANGLE Fits: M1035, M1035A1	2	We can source it $30–$60 eachtypical
4	Machine Bolt NSN 5306-00-207-2221 · P/N 2136455 BOLT,MACHINE Fits: M1035, M1035A1	2	We can source it
5	Backup Light NSN 6220-01-216-5285 · P/N 01-6201-93 LIGHT,BACKUP Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	2	44 in stock $165.00our price Buy online ↗
6	Backup Light NSN 6220-01-216-9337 · P/N 29-1063-02 LIGHT,BACKUP Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	1	We can source it $25–$40 eachtypical
7	Gasket NSN 5330-01-218-1196 · P/N 61-2028-01 GASKET Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	1	We can source it
8	Light Lens NSN 6220-00-001-1514 · P/N 90221 LENS,LIGHT Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	1	18 in stock
9	Instrument Mounting Bezel NSN 6695-01-216-8687 · P/N 10-7005-06 BEZEL,INSTRUMENT MO Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	1	We can source it
10	Machine Screw NSN 5305-01-218-1243 · P/N 23-0118-27 SCREW,MACHINE #10 Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	2	We can source it
11	Incandescent Lamp NSN 6240-00-044-6914 · P/N A52463-2-10 LAMP,INCANDESCENT 24 VOLTS Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	1	366 in stock
12	Plain Hexagon Nut NSN 5310-00-761-6882 · P/N MS51967-2 NUT,PLAIN,HEXAGON 1/4-20 Fits: M1035, M1035A1	4	805 in stock $9.79our price Buy online ↗
13	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: M1035, M1035A1	4	1,162 in stock
14	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M1035, M1035A1	4	2,325 in stock
15	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK #10 Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	4	We can source it
16	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: M996, M996A1, M997, M997A1, M997A2, M1035 and 2 more	4	952 in stock
17	Machine Screw NSN 5305-00-054-6672 · P/N MS51957-47 SCREW,MACHINE #8-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	1,600 in stock
18	Lock Washer NSN 5310-00-045-3299 · P/N MS35338-42 WASHER,LOCK #8 Fits: M996, M996A1, M997, M997A1, M997A2	4	84 in stock
19	Light Backup Backing Plate NSN 6220-01-270-1454 · P/N 12341544 BACKING PLATE,LIGHT Fits: M996, M996A1, M997, M997A1, M997A2	1	80 in stock $25–$50 eachtypical
20	Sheet Spring Nut NSN 5310-01-273-1635 · P/N C-14329-8A04 NUT,SHEET SPRING #8-32 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
21	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: M1035A2	16	2,325 in stock
22	Cap Hexagon Head Screw NSN 5305-00-068-0515 · P/N B1821BH025F100N SCREW,CAP,HEXAGON H Fits: M1035A2	8	2,895 in stock
23	Mounting Bracket P/N 12460455 BRACKET,MOUNTING Fits: M1035A2	2	Ask us
24	Wire Electrical Lead NSN 2590-01-217-2662 · P/N 12339323 LEAD,WIRE,ELECTRICA Fits: M1035A2	2	We can source it
25	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK Fits: M1035A2	4	We can source it
26	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON Fits: M1035A2	4	952 in stock
27	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: M1035A2	5	23 in stock
28	Tie Down Electrical Compon Strap NSN 5975-00-984-6582 · P/N MS3367-1-0 STRAP,TIEDOWN,ELECT Fits: M1035A2	2	253 in stock
29	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N MS51943-32 NUT,SELF-LOCKING,HE Fits: M1035A2	8	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
