HMMWV A2 Engine Wiring Harness TM 9-2320-280-24P · Fig. 76

Every part in figure 76 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 21 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

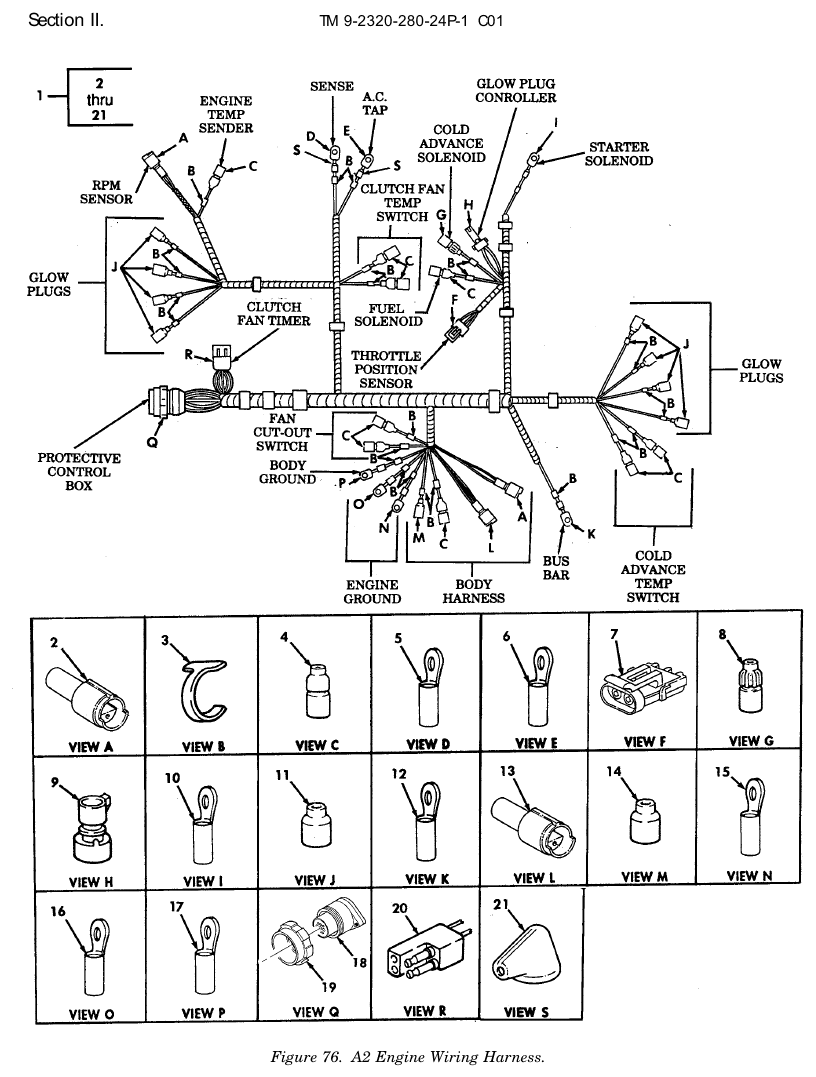

TM 9-2320-280-24P figure 76, A2 Engine Wiring Harness: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine Compartment Harness NSN 6150-01-412-3192 · P/N 12446828 HARNESS,ENGINE COMP 6.5 LITER Fits: All A2 models, plus M1123	1	3 in stock $428.61 per eachgov't list price
2	Plug Electrical Connector Body NSN 5935-01-149-5165 · P/N 7N9738 CONNECTOR BODY,PLUG Fits: All A2 models, plus M1123	2	We can source it
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A2 models, plus M1123	25	We can source it
4	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	9	35 in stock
5	Lug Terminal NSN 5940-00-705-6709 · P/N TG9 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
6	Lug Terminal NSN 5940-00-107-1481 · P/N MS20659-104 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
7	Plug Electrical Connector NSN 5935-01-412-9146 · P/N 12460132 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	1	We can source it
8	Plug Electrical Connector NSN 5935-00-184-6707 · P/N MS27144-3 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	1	We can source it
9	Plug-IN Electronic Compon Socket NSN 5935-01-216-8763 · P/N 5903101 SOCKET,PLUG-IN ELEC Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
10	Lug Terminal NSN 5940-00-705-6708 · P/N TG8 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
11	Bushing Insulator NSN 5970-00-833-8562 · P/N 8338562 INSULATOR,BUSHING Fits: All A2 models, plus M1123	8	469 in stock
12	Lug Terminal NSN 5940-00-114-1315 · P/N MS20659-142 TERMINAL,LUG Fits: All A2 models, plus M1123	1	33 in stock
13	Plug Electrical Connector NSN 5935-01-153-9320 · P/N 120-1805-000 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	1	We can source it
14	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	1	19 in stock
15	Lug Terminal NSN 5940-00-705-6715 · P/N TG15 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
16	Lug Terminal NSN 5940-00-705-6711 · P/N TG11 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
17	Lug Terminal NSN 5940-00-705-6703 · P/N TG3 TERMINAL,LUG Fits: All A2 models, plus M1123	1	34 in stock
18	Plug Electrical Connector NSN 5935-01-415-4322 · P/N 12342654 CONNECTOR,PLUG,ELEC Fits: All A2 models, plus M1123	1	We can source it $185.13 per eachgov't list price
19	Plain Round Nut NSN 5310-01-415-5245 · P/N 12342864 NUT,PLAIN,ROUND Fits: All A2 models, plus M1123	1	We can source it $90–$150 eachtypical
20	Electrical Connector Insert NSN 5935-01-415-4392 · P/N 12342712 INSERT,ELECTRICAL C Fits: All A2 models, plus M1123	1	We can source it
21	Electrical Cable Nipple NSN 5975-01-469-5558 · P/N 0298 4033 .CABLE NIPPLE,ELECTR Fits: All A2 models, plus M1123	2	6 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
