HMMWV A2 Engine Wiring Harness Installation TM 9-2320-280-24P · Fig. 77

Every part in figure 77 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 28 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

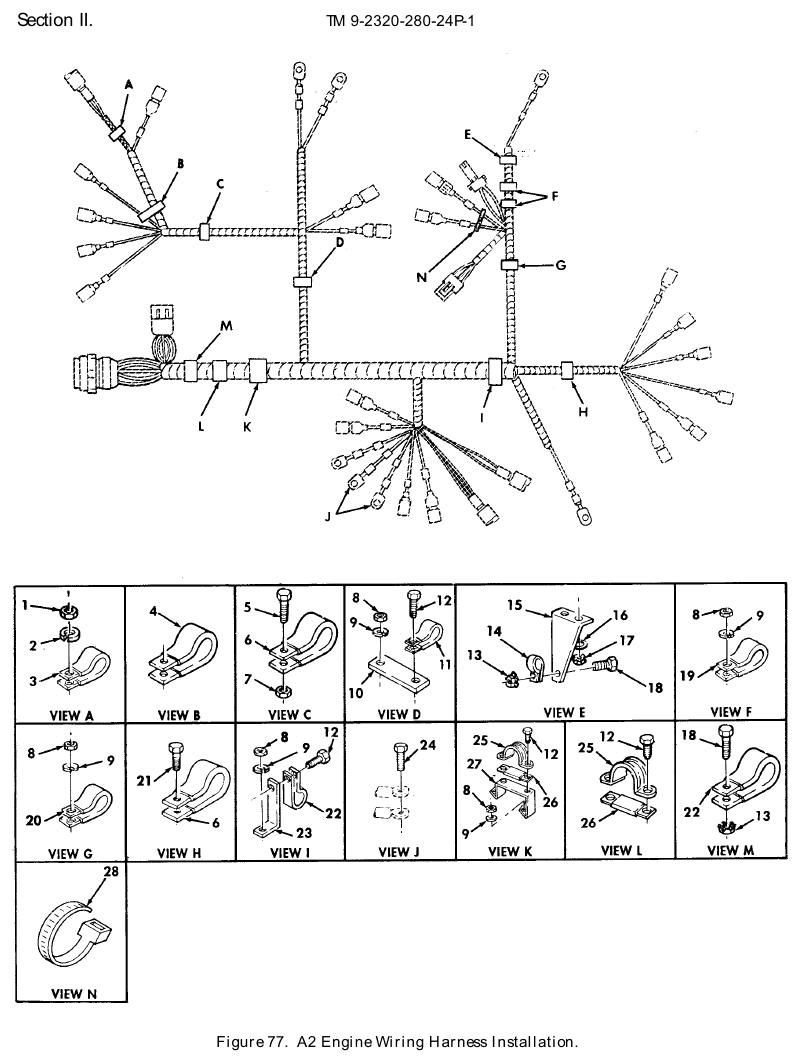

TM 9-2320-280-24P figure 77, A2 Engine Wiring Harness Installation: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: All A2 models, plus M1123	1	398 in stock
2	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A2 models, plus M1123	1	1,162 in stock
3	Loop Clamp NSN 2520-00-989-1771 · P/N MS21333-123 CLAMP,LOOP Fits: All A2 models, plus M1123	1	1 in stock
4	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: All A2 models, plus M1123	1	109 in stock
5	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X .50 Fits: All A2 models, plus M1123	1	19 in stock
6	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: All A2 models, plus M1123	2	5 in stock
7	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All A2 models, plus M1123	1	474 in stock
8	Plain Hexagon Nut NSN 5310-01-366-3539 · P/N B18241B100F NUT,PLAIN,HEXAGON 1/4-28 Fits: All A2 models, plus M1123	8	We can source it
9	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 1/4 Fits: All A2 models, plus M1123	8	1 in stock
10	Angle Bracket NSN 5340-01-212-4716 · P/N 12339335 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	We can source it
11	Loop Clamp NSN 5340-00-764-7052 · P/N MS21333-116 CLAMP,LOOP Fits: All A2 models, plus M1123	1	126 in stock
12	Tapping Screw NSN 5305-01-206-8401 · P/N 448655 SCREW,TAPPING 1/4-28 X 1/2 Fits: All A2 models, plus M1123	6	6,550 in stock
13	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A2 models, plus M1123	2	570 in stock
14	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP Fits: All A2 models, plus M1123	1	We can source it
15	Angle Bracket NSN 5340-01-209-7387 · P/N 12339333 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	3 in stock
16	Lock Washer NSN 5310-01-444-3084 · P/N 11503962 WASHER,LOCK 6MM Fits: All A2 models, plus M1123	2	5,213 in stock
17	Plain Hexagon Nut NSN 5310-01-158-6257 · P/N 11503739 NUT,PLAIN,HEXAGON 6MM X 1 Fits: All A2 models, plus M1123	2	We can source it
18	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,MACHINE 1/4-20 X 3/4 Fits: All A2 models, plus M1123	2	We can source it
19	Loop Clamp NSN 5340-00-964-5267 · P/N MS21333-120 CLAMP,LOOP Fits: All A2 models, plus M1123	2	319 in stock
20	Loop Clamp NSN 5340-00-725-5280 · P/N MS21333-125 CLAMP,LOOP Fits: All A2 models, plus M1123	1	40 in stock
21	Assembled Washer Screw NSN 5305-01-215-5174 · P/N 12340515 SCREW,ASSEMBLED WAS 4.2-1.41 X 13MM Fits: All A2 models, plus M1123	1	153 in stock
22	Loop Clamp NSN 5340-00-809-1500 · P/N MS21333-107 CLAMP,LOOP Fits: All A2 models, plus M1123	2	200 in stock
23	Angle Bracket NSN 5340-01-414-8959 · P/N 12447103 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	We can source it
24	Machine Bolt NSN 5306-01-206-7172 · P/N 11501940 BOLT,MACHINE 10-1.5 X 20MM Fits: All A2 models, plus M1123	2	We can source it
25	Retaining Strap NSN 5340-01-213-4667 · P/N 12340663-1 STRAP,RETAINING Fits: All A2 models, plus M1123	2	3 in stock
26	Strap NSN 5342-01-205-5381 · P/N 12340664 STRAP Fits: All A2 models, plus M1123	2	We can source it
27	Mounting Bracket NSN 5340-01-198-0480 · P/N 12339343 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	5 in stock $25–$45 eachtypical
28	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT Fits: All A2 models, plus M1123	3	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
