HMMWV Transmission Wiring Harness TM 9-2320-280-24P · Fig. 78

Every part in figure 78 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 5 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

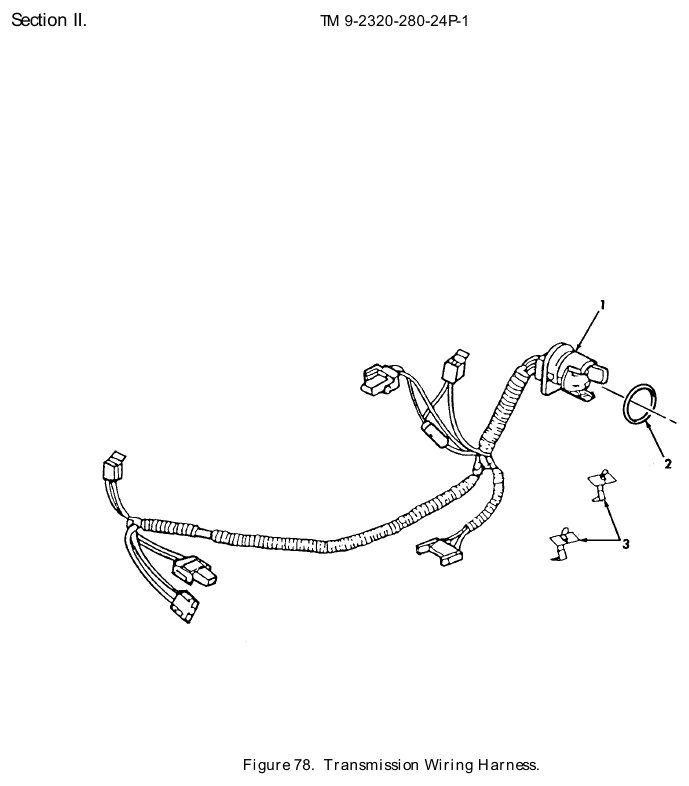

TM 9-2320-280-24P figure 78, Transmission Wiring Harness: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 6150-01-470-2011 · P/N 12181863 WIRING HARNESS,BRAN 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	We can source it $188.06 per eachgov't list price
1	Branched Wiring Harness NSN 6150-01-470-2009 · P/N 12143072 WIRING HARNESS,BRAN 1995 Fits: All A2 models, plus M1123	1	We can source it $140.56 per eachgov't list price
1	Wiring Harness NSN 6150-01-470-2016 · P/N 12181688 WIRING HARNESS,BRAN 1996 Fits: All A2 models, plus M1123	1	We can source it
2	Speedometer Seal NSN 5330-01-096-7699 · P/N 10054241 SEAL,SPEEDOMETER Fits: All A2 models, plus M1123	1	We can source it
3	Spring Tension Clip NSN 5340-01-447-5839 · P/N 8675539 CLIP,SPRING TENSION Fits: All A2 models, plus M1123	2	We can source it $30–$60 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
