HMMWV STE/ICE Wiring Harness TM 9-2320-280-24P · Fig. 79

Every part in figure 79 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 26 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

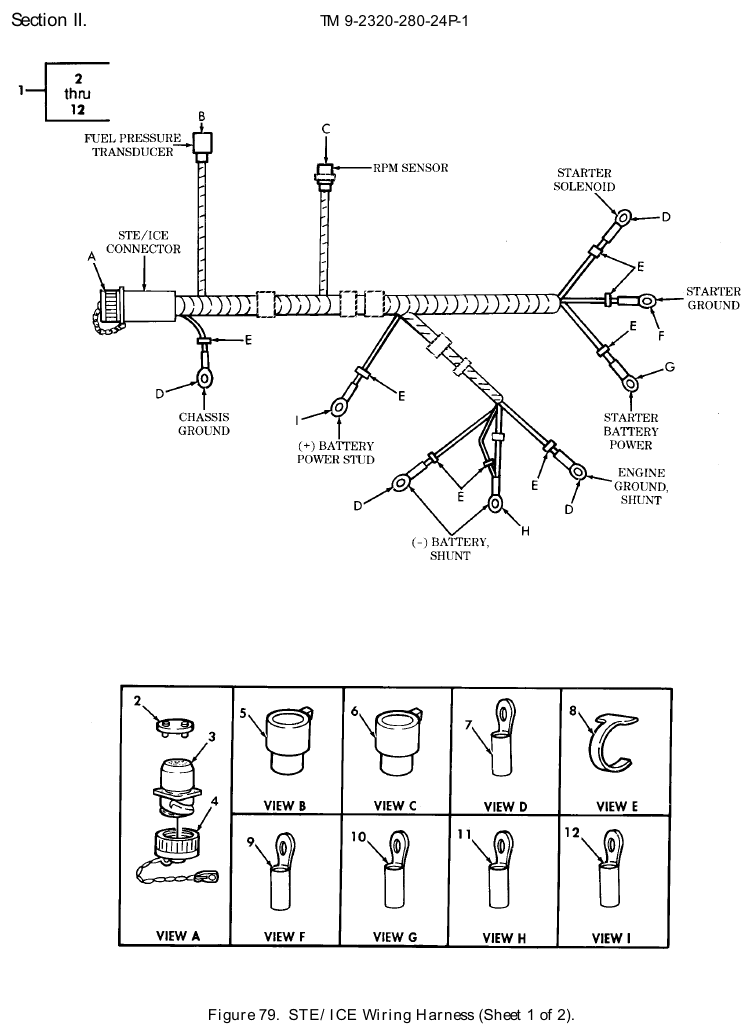

TM 9-2320-280-24P figure 79, STE/ICE Wiring Harness, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.
