HMMWV Hood Wiring Harness TM 9-2320-280-24P · Fig. 80

Every part in figure 80 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 17 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

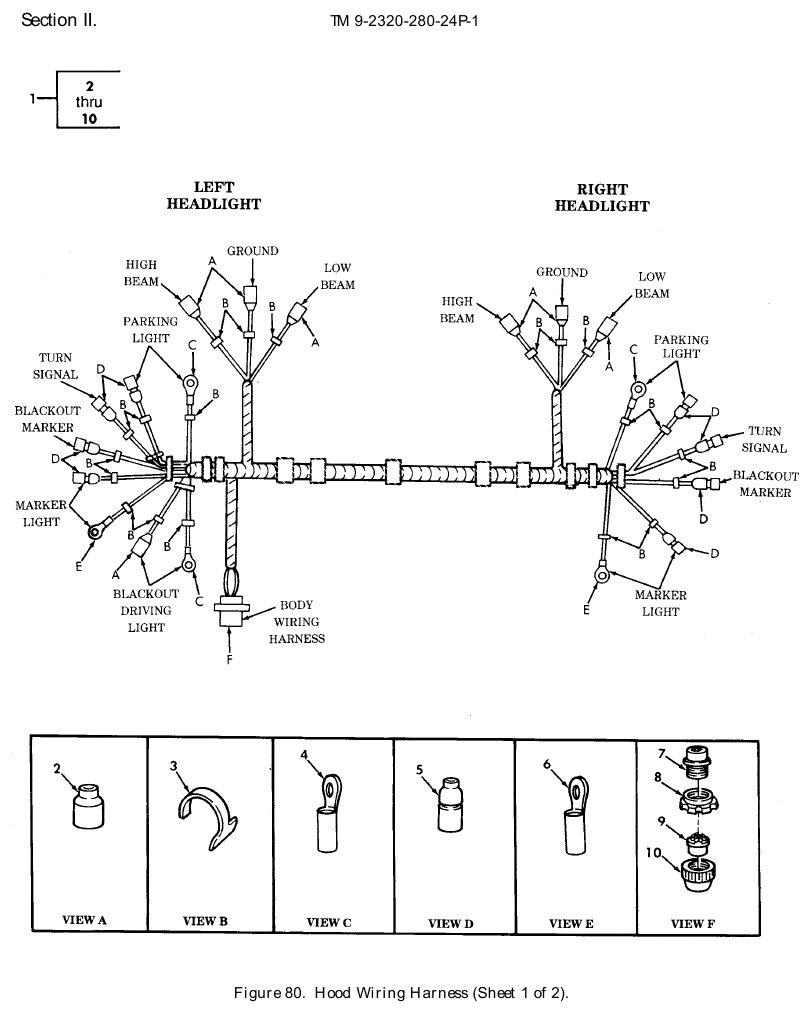

TM 9-2320-280-24P figure 80, Hood Wiring Harness, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 5995-01-184-5544 · P/N 12339349 WIRING HARNESS,BRAN Fits: All models	1	2 in stock $220.46 per eachgov't list price
2	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All models	7	19 in stock
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All models	20	We can source it
4	Lug Terminal NSN 5940-00-705-6711 · P/N TG11 TERMINAL,LUG Fits: All models	3	We can source it
5	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All models	8	35 in stock
6	Lug Terminal NSN 5940-00-705-6708 · P/N TG8 TERMINAL,LUG Fits: All models	2	We can source it
7	Plug Electrical Connector NSN 5935-00-614-3959 · P/N 10-42622-235 CONNECTOR,PLUG,ELEC Fits: All models	1	We can source it $70–$120 eachtypical
8	Sleeve Nut NSN 5310-00-655-9860 · P/N 8701325 NUT,SLEEVE Fits: All models	1	29 in stock $40–$75 eachtypical
9	Nonmetallic Bushing NSN 5365-00-772-2322 · P/N 7722322 BUSHING,NONMETALLIC Fits: All models	1	69 in stock
10	Bushing Retainer Electrical Nut NSN 5935-00-333-9414 · P/N 7723308 NUT,BUSHING RETAINE Fits: All models	1	3 in stock
11	Spring Tension Trim Fastener NSN 5325-01-214-7817 · P/N 5588705 FASTENER,SPRING TEN Fits: All models	2	We can source it
12	Nonmetallic Grommet NSN 5325-00-174-9332 · P/N MS35489-48 GROMMET,NONMETALLIC Fits: All models	2	We can source it
13	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: All models	4	We can source it
14	Loop Clamp NSN 5340-00-988-1162 · P/N MS21333-113 CLAMP,LOOP Fits: All models	7	80 in stock
15	Expansion Shield NSN 5340-01-213-4662 · P/N 12339397-4 SHIELD,EXPANSION 1/4-20 Fits: All models	4	332 in stock
16	Flat Washer NSN 5310-00-809-4058 · P/N 61-0542-1 WASHER,FLAT 3/8 Fits: All models	4	2,325 in stock
17	Nonmetallic Grommet NSN 5325-00-202-4005 · P/N MS35489-110 GROMMET,NONMETALLIC Fits: All models	1	1 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
