HMMWV Body Wiring Harness and Fuel Tank Jumper Assembly TM 9-2320-280-24P · Fig. 81

Every part in figure 81 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 19 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

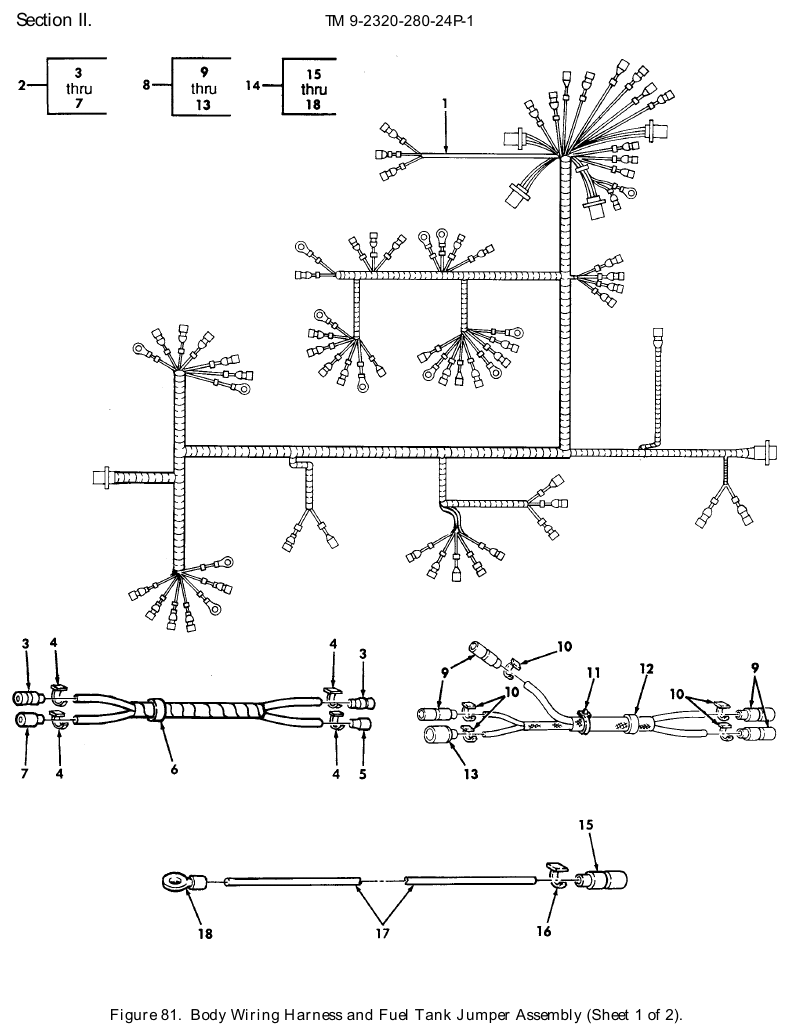

TM 9-2320-280-24P figure 81, Body Wiring Harness and Fuel Tank Jumper Assembly, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 5995-01-188-3269 · P/N 12339345 WIRING HARNESS,BRAN Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	18 in stock $1,050.00our price Buy online ↗
2	Special Purpose E Cable Assembly NSN 5995-01-210-3594 · P/N 12339342 CABLE ASSEMBLY,SPEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	15 in stock $30–$60 eachtypical
3	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	2	35 in stock
4	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	4	We can source it
5	Plug Electrical Connector NSN 5935-00-184-6707 · P/N MS27144-3 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	We can source it
6	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	1 in stock $20.58our price Buy online ↗
7	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	19 in stock
8	Wiring Harness NSN 6150-01-362-5229 · P/N 12342789 WIRING HARNESS USE WITH TRANSFER ASSEMBLY P/N 5937387 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	146 in stock $29.39our price Buy online ↗
9	Plug Electrical Connector NSN 5935-00-115-2307 · P/N MS27144-2 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	4	55 in stock
10	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	5	We can source it
11	Tie Down Electrical Compon Strap NSN 5975-00-984-6582 · P/N MS3367-1-0 STRAP,TIEDOWN,ELECT Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	4	253 in stock
12	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	1 in stock $20.58our price Buy online ↗
13	Plug Electrical Connector NSN 5935-00-115-2306 · P/N MS27142-3 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	9 in stock
14	Electrical Lead NSN 6150-01-473-2435 · P/N 12339324 LEAD,ELECTRICAL TALL LAMP GROUND GROUND.............................. 2 Fits: M1035, M1035A1, M1035A2	2	We can source it $50–$95 eachtypical
15	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M1035, M1035A1, M1035A2	1	35 in stock
16	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M1035, M1035A1, M1035A2	1	We can source it
17	Special Purpose Electrical Cable NSN 6145-00-152-6499 · P/N M13486/1-5 WIRE,ELECTRICAL Fits: M1035, M1035A1, M1035A2	1	33 in stock
18	Lug Terminal NSN 5940-00-705-6711 · P/N TG11 TERMINAL,LUG Fits: M1035, M1035A1, M1035A2	1	We can source it
19	Power Electrical Cable Assembly NSN 6150-01-413-0853 · P/N 12460097 CABLE ASSEMBLY,POWE Fits: All A2 models except M997A2, M1035A2, plus M1123	1	3 in stock $2,317.06 per eachgov't list price

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
