HMMWV Body Wiring Harness, Ambulance TM 9-2320-280-24P · Fig. 82

Every part in figure 82 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 4 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

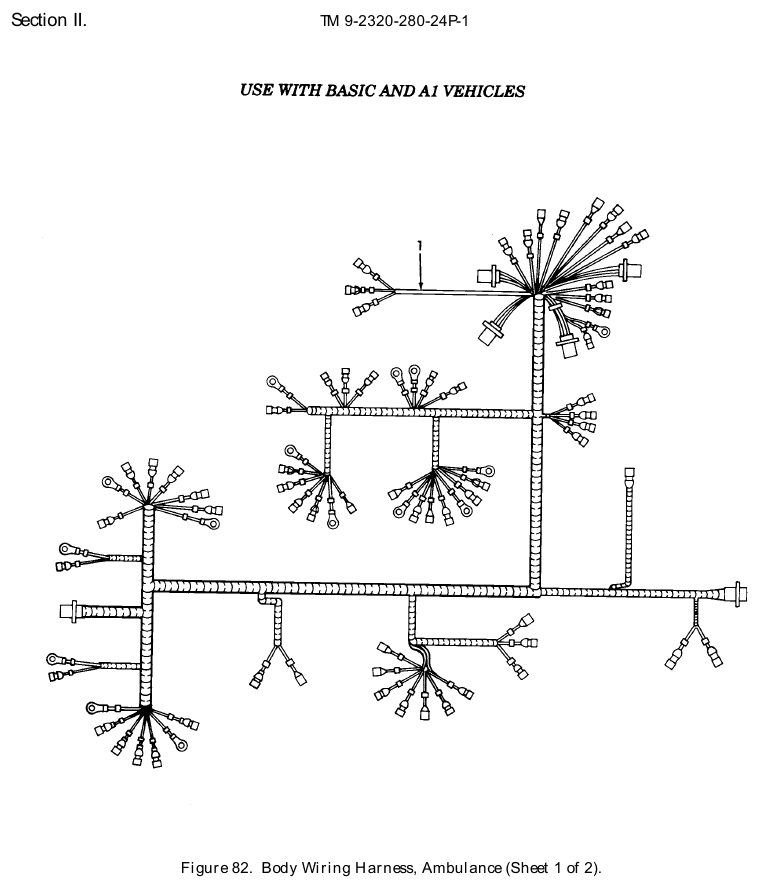

TM 9-2320-280-24P figure 82, Body Wiring Harness, Ambulance, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Power Electrical Cable Assembly NSN 6150-01-413-1845 · P/N 12460099 CABLE ASSEMBLY,POWE Fits: M1035A2	1	We can source it quote only $3,684.22 per eachgov't list price
1	Power Electrical Cable Assembly NSN 6150-01-413-1847 · P/N 12460098 CABLE ASSEMBLY,POWE Fits: M997A2	1	21 in stock $1,427.74our price Buy online ↗
1	Branched Wiring Harness NSN 5995-01-197-5554 · P/N 12339346 WIRING HARNESS,BRAN Fits: M1035, M1035A1	1	We can source it $2,983.58 per eachgov't list price
1	Branched Wiring Harness NSN 5995-01-309-2953 · P/N 12340843 WIRING HARNESS,BRAN Fits: M996, M996A1, M997, M997A1	1	We can source it $1,541.04 per eachgov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
