HMMWV Body Wiring Harness – Partial View TM 9-2320-280-24P · Fig. 83

Every part in figure 83 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 42 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

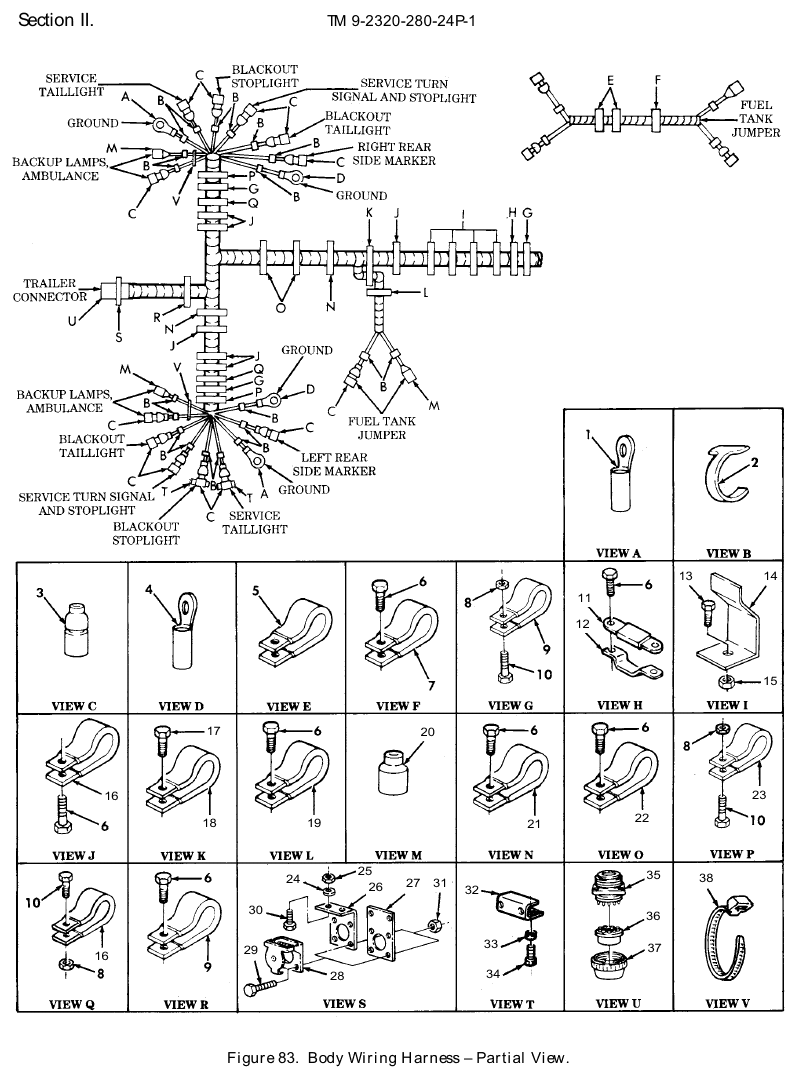

TM 9-2320-280-24P figure 83, Body Wiring Harness – Partial View: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Lug Terminal NSN 5940-00-705-6711 · P/N TG11 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	We can source it
2	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 and A1 models, plus M1121	20	We can source it
3	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	11	35 in stock
4	Lug Terminal NSN 5940-00-705-6708 · P/N TG8 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	We can source it
5	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	109 in stock
6	Screw NSN 5305-01-204-6502 · P/N 112-1008800-003 SCREW #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	14	10 in stock
7	Spring Tension Clip NSN 5340-01-214-3712 · P/N 12340020 CLIP,SPRING TENSION Fits: All A0 and A1 models, plus M1121	1	We can source it
8	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: All A0 and A1 models, plus M1121	6	10 in stock
9	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	3	We can source it
10	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	6	19 in stock
11	Mounting Plate NSN 5340-01-443-6908 · P/N 12340666 PLATE,MOUNTING Fits: All A0 and A1 models, plus M1121	1	We can source it
12	Retaining Strap NSN 5340-01-213-4665 · P/N 12340665 STRAP,RETAINING Fits: All A0 and A1 models, plus M1121	1	6 in stock
13	Cap Hexagon Head Screw NSN 5305-01-215-3990 · P/N 453349 SCREW,CAP,HEXAGON H 1/4-20 X 1/2 Fits: All A0 and A1 models, plus M1121	4	We can source it
14	Retaining Strap NSN 5340-01-212-2407 · P/N 12339339 STRAP,RETAINING Fits: All A0 and A1 models, plus M1121	4	2 in stock
15	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A0 and A1 models, plus M1121	4	570 in stock
16	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	6	19 in stock
17	Machine Screw NSN 5305-01-259-6322 · P/N 5593913 SCREW,MACHINE #10-32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	1,205 in stock
18	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	We can source it
19	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	We can source it
20	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M1035, M1035A1	2	19 in stock
20	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	19 in stock
21	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	787 in stock
22	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP 1/4-20 X .88 Fits: All A0 and A1 models, plus M1121	2	5 in stock
23	Loop Clamp NSN 5340-00-150-1658 · P/N 11176106-5 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	We can source it
24	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All A0 and A1 models, plus M1121	2	471 in stock
25	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A0 and A1 models, plus M1121	2	354 in stock
26	Angle Bracket NSN 5340-01-314-4951 · P/N 12338696-1 BRACKET,ANGLE Fits: All A0 models except M1042; all A1 models except M997A1, M1097A1, plus M1121	1	We can source it $25–$40 eachtypical
27	Retaining Electrical Conne Plate NSN 5935-01-421-4801 · P/N 12339332 PLATE,RETAINING,ELE Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
28	Electrical Connector Cover NSN 5935-00-773-1428 · P/N 7731428 COVER,ELECTRICAL CO Fits: All A0 and A1 models, plus M1121	1	586 in stock $40.00our price Buy online ↗
29	Machine Screw NSN 5305-00-390-0524 · P/N MS51849-98 SCREW,MACHINE 1/4-20 X 1.00 Fits: All A1 models except M996A1, M997A1, M1097A1, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	4	We can source it
29	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE Fits: M996, M996A1, M997, M997A1, M1037, M1042 and 2 more	6	We can source it
29	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H USE WITH AIR BUMPER REINFORCEMENT MWO9-2320-280- 20-6 Fits: M996, M996A1, M997, M997A1, M1037, M1042 and 2 more	4	558 in stock
30	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: All A0 and A1 models, plus M1121	2	292 in stock
31	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 X 1.00 Fits: M996, M996A1, M997, M997A1, M1037, M1042 and 2 more	6	570 in stock
31	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS Fits: All A1 models except M996A1, M997A1, M1097A1, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	4	570 in stock
32	Structural Channel NSN 6220-01-257-3878 · P/N 12339008 GUARD,LAMP Fits: All A0 and A1 models, plus M1121	2	10 in stock
33	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: All A0 and A1 models, plus M1121	4	1,162 in stock
34	Machine Bolt NSN 5306-00-207-2221 · P/N 2136455 BOLT,MACHINE 1/4-20 X 3/4 Fits: All A0 and A1 models, plus M1121	4	We can source it
35	Receptacle Electrical Connector NSN 5935-00-846-3884 · P/N MS75021-2 CONNECTOR,RECEPTACL Fits: All A0 and A1 models, plus M1121	1	3 in stock $40–$85 eachtypical
36	Nonmetallic Bushing NSN 5365-00-090-5426 · P/N 7722333 BUSHING,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	10 in stock
37	Plain Knurled Nut NSN 5310-00-393-6685 · P/N 7723309 NUT,PLAIN,KNURLED Fits: All A0 and A1 models, plus M1121	1	16 in stock
38	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: All A0 and A1 models, plus M1121	2	269 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
