HMMWV Wiring Harness, Blackout Jumper Switch, M996, M996A1, M997, M997A1, and M997A2 TM 9-2320-280-24P · Fig. 90

Every part in figure 90 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 6 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

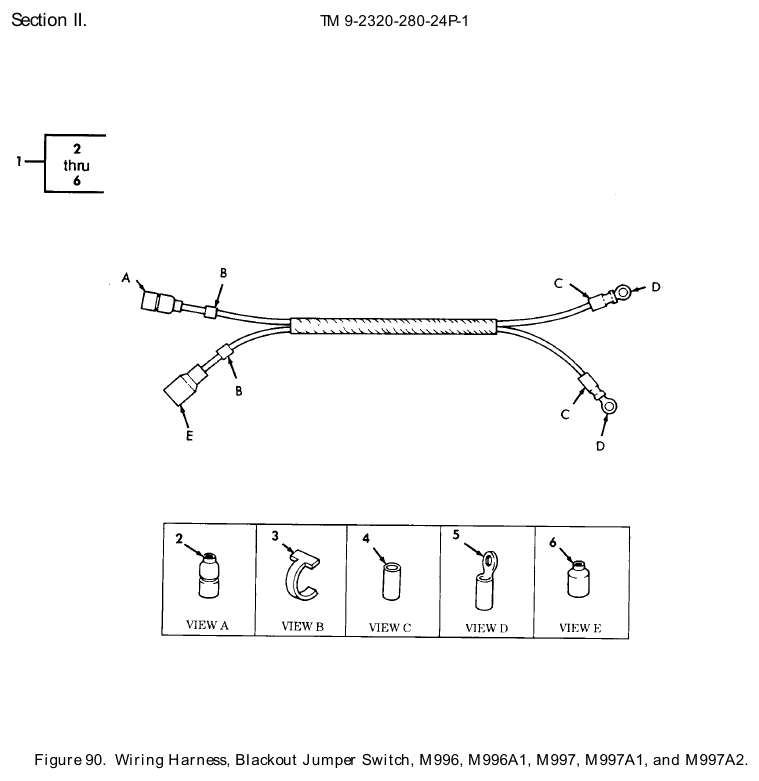

TM 9-2320-280-24P figure 90, Wiring Harness, Blackout Jumper Switch, M996, M996A1, M997, M997A1, and M997A2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Special Purpose E Cable Assembly NSN 6150-01-269-1840 · P/N 12341408 CABLE ASSEMBLY,SPEC Fits: M996, M996A1, M997, M997A1, M997A2	1	22 in stock $25–$55 eachtypical
2	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	35 in stock
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
4	Insulation Sleeving Make From P/N M23053/6-107-0-7 INSULATION SLEEVING MAKE FROM INSULATION SLEEVING,P/N M23053/6- 107-0,7 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	2	Ask us
5	Lug Terminal NSN 5940-00-113-3143 · P/N MS20659-103 TERMINAL,LUG Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
6	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	19 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
