HMMWV Main Power Cable Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 91

Every part in figure 91 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 14 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

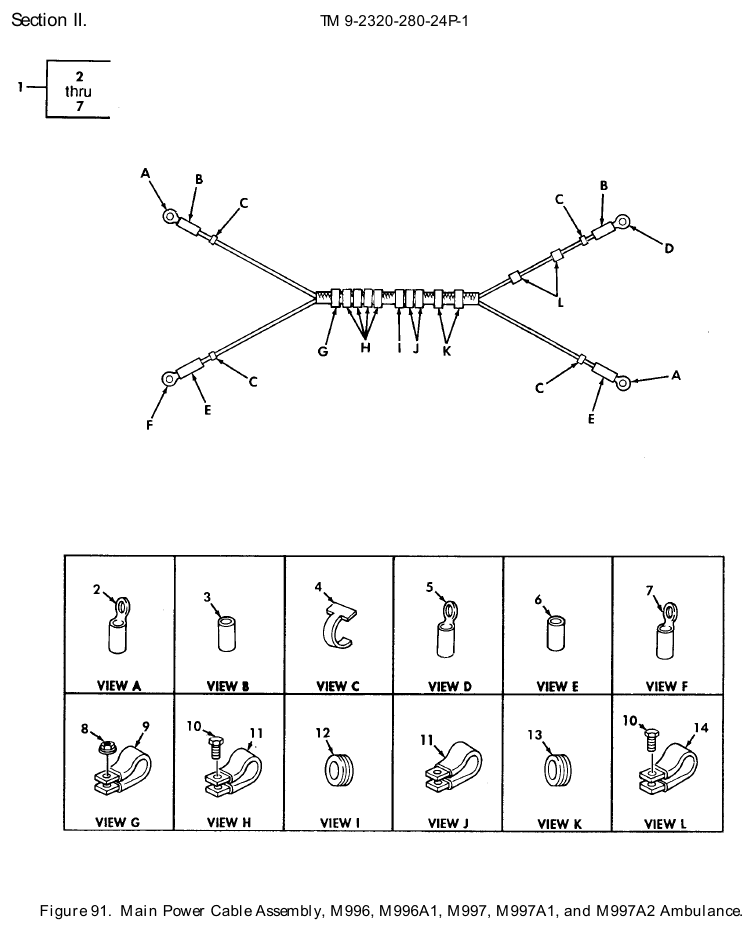

TM 9-2320-280-24P figure 91, Main Power Cable Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Power Electrical Cable Assembly
NSN 6150-01-269-5275 · P/N 12341294
CABLE ASSEMBLY,POWE
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
quote only
$116.94 per assemblygov't list price
2
Lug Terminal
NSN 5940-00-115-4992 · P/N MS20659-110
TERMINAL,LUG
Fits: M996, M996A1, M997, M997A1, M997A2
 2 We can source it
3
Insulation Sleeving Make From
P/N M23053/6-104-2-4
INSULATION SLEEVING MAKE FROM INSULATION SLEEVING,P/N M23053/6- 104-2,4 INCHES LONG
Fits: M996, M996A1, M997, M997A1, M997A2
 2 Ask us
4
Marker Band
NSN 9905-01-013-8723 · P/N M43436/3-1
BAND,MARKER
Fits: M996, M996A1, M997, M997A1, M997A2
 4 We can source it
5
Lug Terminal
NSN 5940-00-115-2676 · P/N MS20659-143
TERMINAL,LUG
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
6
Insulation Sleeving Black
P/N M23053/6-103-6-3
INSULATION SLEEVING BLACK, 106 I.D.,MAKE FROM INSULATION SLEEVING, P/N M23053/6-103-6, 3 INCHES LONG
Fits: M996, M996A1, M997, M997A1, M997A2
 2 Ask us
7
Lug Terminal
NSN 5940-00-114-1317 · P/N MS20659-109
TERMINAL,LUG
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
8
Nut
NSN 5310-01-270-8189 · P/N 5593413
NUT #10-32
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
9
Loop Clamp
NSN 5340-00-724-7038 · P/N MS21333-76
CLAMP,LOOP
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
10
Machine Screw
NSN 5305-00-179-8946 · P/N 9418346
SCREW,MACHINE #10-32 X 3/4
Fits: M996, M996A1, M997, M997A1, M997A2
 6 We can source it
11
Loop Clamp
NSN 5340-00-050-2740 · P/N MS21333-75
CLAMP,LOOP
Fits: M996, M996A1, M997, M997A1, M997A2
 6 787 in stock
12
Nonmetallic Grommet
NSN 5325-01-290-1695 · P/N 5593535
GROMMET,NONMETALLIC
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
$45–$90 eachtypical
13
Nonmetallic Grommet
NSN 5325-01-289-7859 · P/N 2400
GROMMET,NONMETALLIC
Fits: M996, M996A1, M997, M997A1, M997A2
 2 1,268 in stock
14
Loop Clamp
NSN 5340-00-689-9514 · P/N MS21333-70
CLAMP,LOOP
Fits: M996, M996A1, M997, M997A1, M997A2
 2 5 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
