HMMWV Interior Lighting Harness Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 92

Every part in figure 92 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 21 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

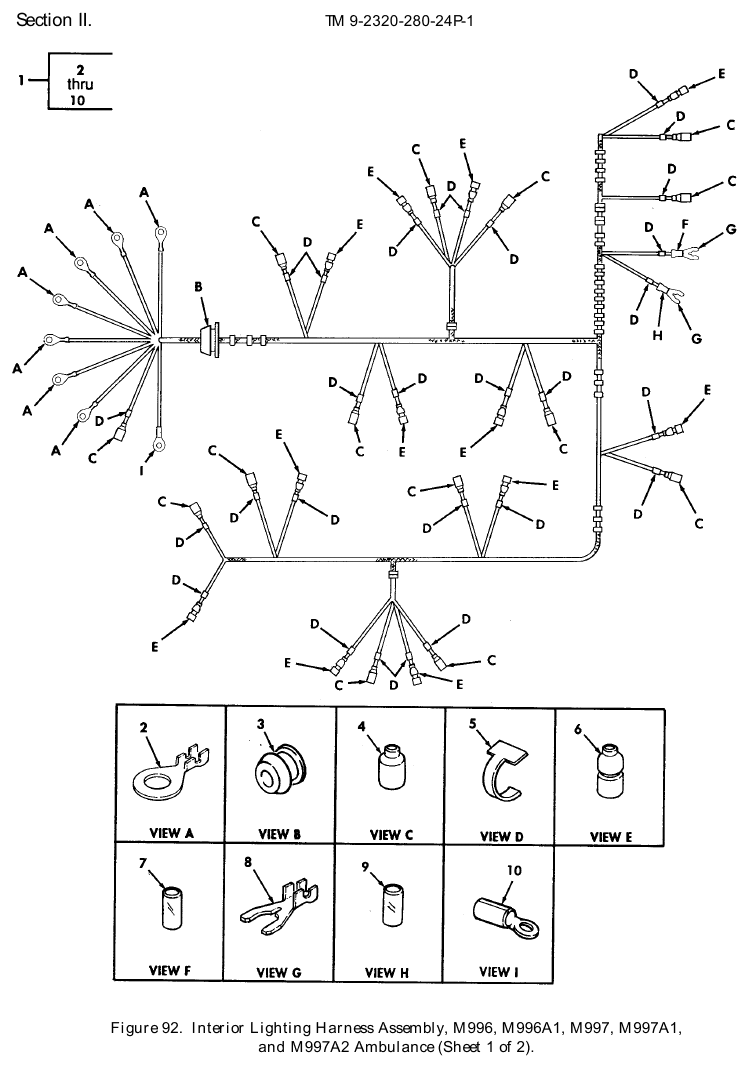

TM 9-2320-280-24P figure 92, Interior Lighting Harness Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 6150-01-269-5300 · P/N 12341125 WIRING HARNESS,BRAN Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $705.78 per assemblygov't list price
2	Lug Terminal NSN 5940-01-270-3700 · P/N 2973850 TERMINAL,LUG Fits: M996, M996A1, M997, M997A1, M997A2	7	29,678 in stock
3	Nonmetallic Grommet NSN 5325-01-492-5510 · P/N 12341125-1 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$60 eachtypical
4	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	14	19 in stock
5	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1, M997, M997A1, M997A2	28	We can source it
6	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	12	35 in stock
7	Insulation Sleeving Red P/N M23053/6-107-1-7 INSULATION SLEEVING RED, 0.375 I.D.,MAKE FROM INSULATION SLEEVING, P/N M23053/6-107-1,7 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
8	Lug Terminal NSN 5940-01-474-5066 · P/N 60187-2 TERMINAL,LUG Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
9	Insulation Sleeving P/N M23053/6-107-0-7 INSULATION SLEEVING BLACK,0.375 I.D.,MAKE FROM INSULATION SLEEVING, P/N M23053/6-107-0,7 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
10	Lug Terminal NSN 5940-00-107-1481 · P/N MS20659-104 TERMINAL,LUG Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
11	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H Fits: M996, M996A1, M997, M997A1, M997A2	20	We can source it
12	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	3	35 in stock
13	Nonmetallic Grommet NSN 5325-00-291-9366 · P/N MS35489-11 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
14	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M996, M996A1, M997, M997A1, M997A2	2	4 in stock
15	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	14	5 in stock
16	Nut NSN 5310-01-270-8189 · P/N 271168 NUT #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
17	Tapping Screw NSN 5305-01-254-2460 · P/N 5592840 SCREW,TAPPING,THREA #10-16 X .50 Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
18	Plate Spacer NSN 5365-01-289-6169 · P/N 12356795 SPACER,PLATE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $30–$70 eachtypical
19	Nonmetallic Grommet NSN 5325-01-289-5038 · P/N 2874 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
20	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	3	5 in stock
21	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
