HMMWV Heating/Vent Harness Assembly, M966 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 93

Every part in figure 93 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 27 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

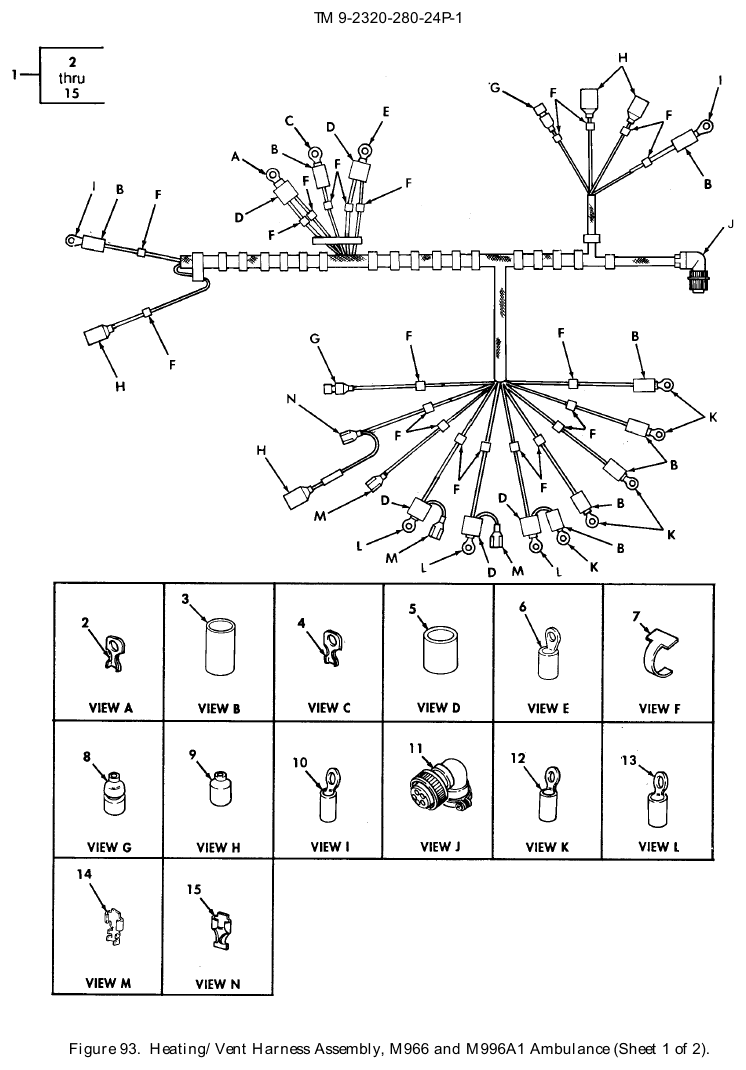

TM 9-2320-280-24P figure 93, Heating/Vent Harness Assembly, M966 and M996A1 Ambulance, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wiring Harness NSN 6150-01-269-1897 · P/N 12341458 WIRING HARNESS Fits: M996, M996A1	1	We can source it $892.70 per eachgov't list price
2	Lug Terminal NSN 5940-01-341-7689 · P/N 12004436 TERMINAL,LUG Fits: M996, M996A1	1	We can source it
3	Insulation Sleeving P/N M23053/4-302-0- INSULATION SLEEVING BLACK,(14 .75 AWG),MAKE FROM INSULATION SLEEVING, P/N ,M23053/4-302-0,0.75 INCHES LONG Fits: M996, M996A1	8	Ask us
4	Lug Terminal NSN 5940-01-270-3701 · P/N 2965718 TERMINAL,LUG Fits: M996, M996A1	1	We can source it $25–$55 eachtypical
5	Insulation Sleeving P/N M23053/4-303-0- INSULATION SLEEVING BLACK,(14-AWG) .75 MAKE FROM INSULATION SLEEVING,P/N M23053/4-303-0,0.75 INCHES LONG Fits: M996, M996A1	5	Ask us
6	Lug Terminal NSN 5940-01-270-3700 · P/N 2973850 TERMINAL,LUG Fits: M996, M996A1	1	29,678 in stock
7	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1	21	We can source it
8	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1	2	35 in stock
9	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1	4	19 in stock
10	Lug Terminal NSN 5940-00-705-6703 · P/N TG3 TERMINAL,LUG Fits: M996, M996A1	2	34 in stock
11	Plug Electrical Connector NSN 5935-00-806-4183 · P/N MS3108R18-11S CONNECTOR,PLUG,ELEC Fits: M996, M996A1	1	We can source it $75–$125 eachtypical
12	Lug Terminal NSN 5940-00-113-3143 · P/N MS20659-103 TERMINAL,LUG Fits: M996, M996A1	5	We can source it
13	Lug Terminal NSN 5940-00-113-0954 · P/N MS20659-165 TERMINAL,LUG Fits: M996, M996A1	3	We can source it
14	Quick Disconnect Terminal NSN 5940-01-440-0097 · P/N 361130-EA02 TERMINAL,QUICK DISC Fits: M996, M996A1	3	We can source it $227.59 per eachgov't list price
15	Quick Disconnect Terminal NSN 5940-01-436-4561 · P/N 361230-D TERMINAL,QUICK DISC Fits: M996, M996A1, M997A2	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M996, M996A1	3	471 in stock
17	Loop Clamp NSN 5340-00-854-6729 · P/N MS21333-103 CLAMP,LOOP Fits: M996, M996A1	4	We can source it
18	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M996, M996A1	3	4,285 in stock
19	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M996, M996A1	1	5 in stock
20	Nut NSN 5310-01-270-8189 · P/N 5593413 NUT #10-32 Fits: M996, M996A1	1	We can source it
21	Machine Screw NSN 5305-00-179-8946 · P/N 9418346 SCREW,MACHINE #10-32 X .75 Fits: M996, M996A1	14	We can source it
22	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M996, M996A1	9	12 in stock
23	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER,ASSEMBLY Fits: M996, M996A1	1	168 in stock
24	Nonmetallic Bushing NSN 5365-01-272-8435 · P/N 12341231-2 BUSHING,NONMETALLIC Fits: M996, M996A1	1	We can source it $25–$40 eachtypical
25	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT 7/32 Fits: M996, M996A1	2	909 in stock
26	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: M996, M996A1	5	19 in stock
27	Loop Clamp NSN 5340-00-088-6655 · P/N MS21333-101 CLAMP,LOOP Fits: M996, M996A1	1	169 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
