HMMWV Aspirator/Resuscitator Cable Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 94

Every part in figure 94 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 10 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

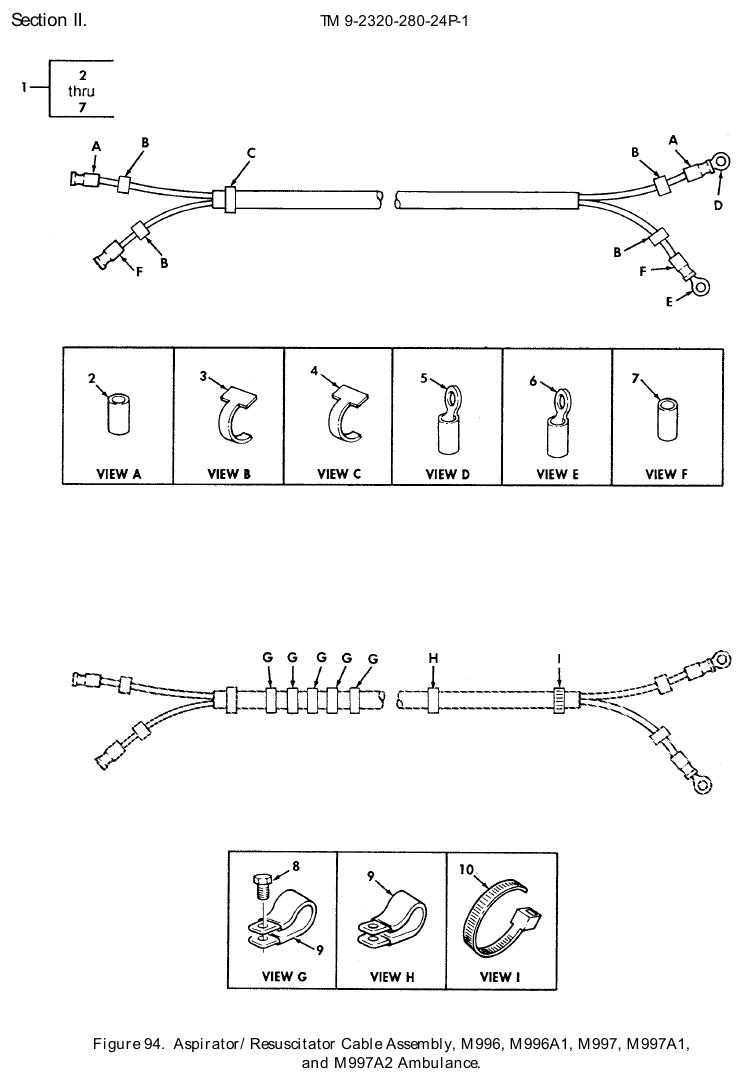

TM 9-2320-280-24P figure 94, Aspirator/Resuscitator Cable Assembly, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Wiring Harness
NSN 6150-01-269-5299 · P/N 12341293
WIRING HARNESS
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
$240.22 per assemblygov't list price
2
Insulation Sleeving
P/N M23053/15-112-2-
INSULATION SLEEVING RED,6 AWG, .75 MAKE FROM INSULATION SLEEVING,P/N M23053/15-112-2,0.75 INCHES LONG
Fits: M996, M996A1, M997, M997A1, M997A2
 2 Ask us
3
Marker Band
NSN 9905-00-893-3570 · P/N M43436/1-3
BAND,MARKER
Fits: M996, M996A1, M997, M997A1, M997A2
 4 1 in stock
$20.58our price
Buy online ↗
4
Marker Band
NSN 9905-00-945-7637 · P/N M43436/1-4
BAND,MARKER
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
5
Lug Terminal
NSN 5940-00-115-2676 · P/N MS20659-143
TERMINAL,LUG 6 AWG,3/8 STUD
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
6
Lug Terminal
NSN 5940-00-115-4992 · P/N MS20659-110
TERMINAL,LUG
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
7
Insulation Sleeving
P/N M23053/15-112-0-
INSULATION SLEEVING BLACK,6 AWG, .75 MAKE FROM HEATSHRINK,P/N M23053/15- 112-0,0.75 INCHES LONG
Fits: M996, M996A1, M997, M997A1, M997A2
 2 Ask us
8
Machine Screw
NSN 5305-00-179-8946 · P/N 9418346
SCREW,MACHINE #10-32 X .75
Fits: M996, M996A1, M997, M997A1, M997A2
 5 We can source it
9
Loop Clamp
NSN 5340-00-050-2740 · P/N MS21333-75
CLAMP,LOOP
Fits: M996, M996A1, M997, M997A1, M997A2
 6 787 in stock
10
Tie Down Electrical Compon Strap
NSN 5975-01-273-8133 · P/N MS3367-3
STRAP,TIEDOWN,ELECT
Fits: M996, M996A1, M997, M997A1, M997A2
 1 We can source it
Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
