HMMWV NBC Wiring Harness, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 95

Every part in figure 95 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 46 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

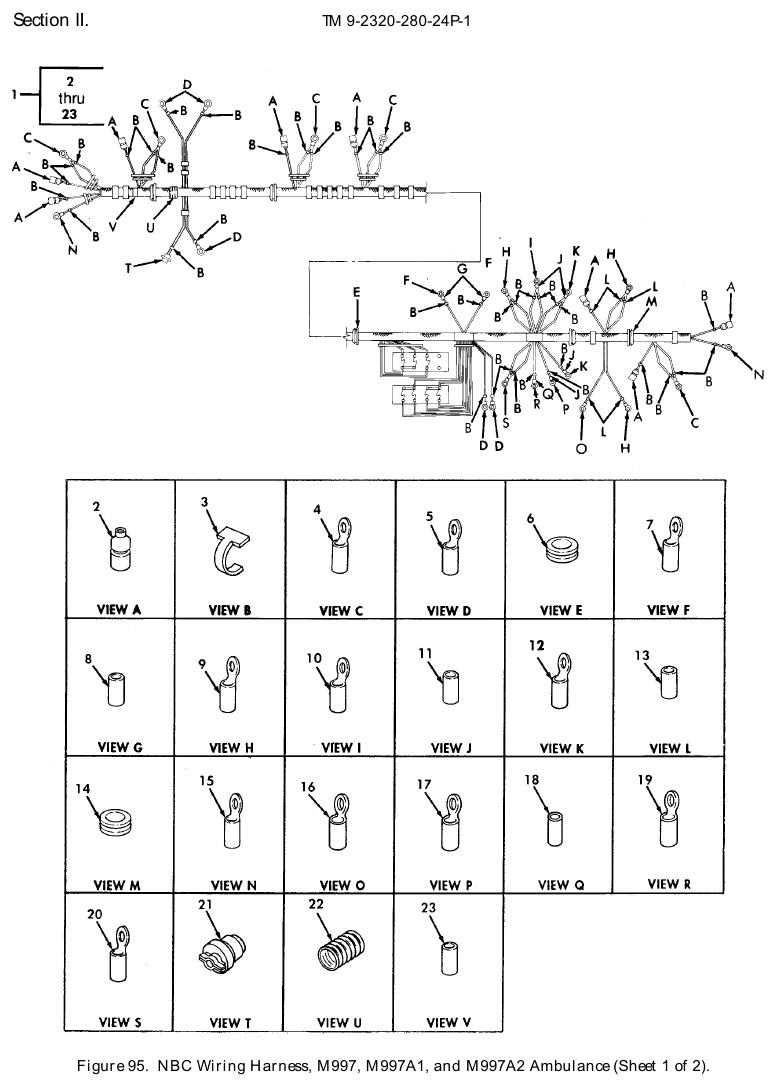

TM 9-2320-280-24P figure 95, NBC Wiring Harness, M997, M997A1, and M997A2 Ambulance, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wiring Harness NSN 6150-01-269-5298 · P/N 12341207 WIRING HARNESS Fits: M997, M997A1, M997A2	1	We can source it $1,948.27 per eachgov't list price
2	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M997, M997A1, M997A2	8	35 in stock
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M997, M997A1, M997A2	37	We can source it
4	Lug Terminal NSN 5940-01-443-9580 · P/N 100828-HN37 TERMINAL,LUG Fits: M997, M997A1, M997A2	5	We can source it $225.45 per eachgov't list price
5	Lug Terminal NSN 5940-00-113-3143 · P/N MS20659-103 TERMINAL,LUG Fits: M997, M997A1, M997A2	5	We can source it
6	Metallic Grommet NSN 5325-01-477-5348 · P/N 5597277 GROMMET,METALLIC Fits: M997, M997A1, M997A2	1	We can source it $213.06 per eachgov't list price
7	Lug Terminal NSN 5940-01-270-3700 · P/N 2973850 TERMINAL,LUG Fits: M997, M997A1, M997A2	2	29,678 in stock
8	Insulation Sleeving Make From P/N M23053/4-302-2-2 INSULATION SLEEVING MAKE FROM INSULATION,P/N M23053/4-302-2,2 INCHES LONG Fits: M997, M997A1, M997A2	2	Ask us
9	Lug Terminal NSN 5940-00-114-1300 · P/N MS20659-105 TERMINAL,LUG Fits: M997, M997A1, M997A2	3	400 in stock
10	Lug Terminal NSN 5940-00-113-9819 · P/N MS20659-106 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it
11	Tubing P/N M23053/4-304-2-4 TUBING,HEATSHRINK MAKE FROM INSULATION, P/N M23053/4-304-2,4 INCHES LONG Fits: M997, M997A1, M997A2	4	Ask us
12	Lug Terminal NSN 5940-00-115-2674 · P/N MS20659-108 TERMINAL,LUG Fits: M997, M997A1, M997A2	2	We can source it
13	Insulation Sleeving Red P/N M23053/4-203-2-3 INSULATION SLEEVING RED,MAKE FROM INSULATION,P/N M23053/4-203-2,3 INCHES LONG Fits: M997, M997A1, M997A2	5	Ask us
14	Grommet P/N 12341207-1 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	Ask us
15	Lug Terminal NSN 5940-01-270-3702 · P/N 2984172 TERMINAL,LUG 1/4 X 1-14 AWG Fits: M997, M997A1, M997A2	2	We can source it
16	Lug Terminal NSN 5940-00-114-1314 · P/N MS20659-129 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it
17	Lug Terminal NSN 5940-00-113-3145 · P/N MS20659-163 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it
18	Insulation Sleeving Red P/N M23053/4-303-2-3 INSULATION SLEEVING RED,MAKE FROM INSULATION,P/N M23053/4-303-2,3 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
19	Lug Terminal NSN 5940-01-269-8396 · P/N 6288634-L TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
20	Lug Terminal NSN 5940-00-113-9825 · P/N MS20659-141 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	100 in stock
21	Plug Electrical Connector NSN 5935-01-147-0148 · P/N MS3456W12-5S CONNECTOR,PLUG,ELEC Fits: M997, M997A1, M997A2	1	We can source it $40–$80 eachtypical
22	Conduit Make From Tubing P/N 12339351-3 CONDUIT MAKE FROM TUBING, NONMETALLIC,P/N 12420924-004,46 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
23	Sleeving Red Insulation P/N M23053/4-202-2-2 INSULATION,SLEEVING RED,MAKE FROM INSULATION,P/N M23053/4-202-2,2 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
24	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	5 in stock
25	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X .62 Fits: M997, M997A1, M997A2	2	We can source it
26	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	5 in stock
27	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: M997, M997A1, M997A2	16	269 in stock
28	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: M997, M997A1, M997A2	2	We can source it
29	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-32 X .75 Fits: M997, M997A1, M997A2	6	We can source it
30	Nonmetallic Grommet NSN 5325-01-274-3317 · P/N MS35489-39X GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it
31	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M997, M997A1, M997A2	6	12 in stock
32	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M997, M997A1, M997A2	5	474 in stock
33	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP Fits: M997, M997A1, M997A2	3	We can source it
34	Tapping Screw NSN 5305-01-211-3786 · P/N 167163 SCREW,TAPPING #10-32 X .50 Fits: M997, M997A1, M997A2	3	142 in stock
35	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP Fits: M997, M997A1, M997A2	5	35 in stock
36	Machine Screw NSN 5305-00-179-8946 · P/N 9418346 SCREW,MACHINE #10-32 X .63 Fits: M997, M997A1, M997A2	5	We can source it
37	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER,ASSEMBLY Fits: M997, M997A1, M997A2	2	168 in stock
38	Nonmetallic Bushing NSN 5365-01-274-4675 · P/N 5995488 BUSHING,NONMETALLIC Fits: M997, M997A1, M997A2	1	1,102 in stock $25.00our price Buy online ↗
39	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	2	909 in stock
40	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M997, M997A1, M997A2	2	570 in stock
41	Nonmetallic Bushing NSN 5365-01-272-8435 · P/N 12341231-2 BUSHING,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
42	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M997, M997A1, M997A2	2	559 in stock
43	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M997, M997A1, M997A2	2	4 in stock
44	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	We can source it
45	Nonmetallic Grommet NSN 5325-01-289-6196 · P/N 12341627 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	We can source it $128.23 per eachgov't list price
46	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
